010511616 Terminal Block, DIN Rail, 2Pos, 12AWG Entrelec - Te Connectivity

ENTRELEC - TE CONNECTIVITYSKU:010511616 Bestelcode:149293

Prijs:
Actie prijs€4,01

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2516 units)

Documenten en downloads

Omschrijving

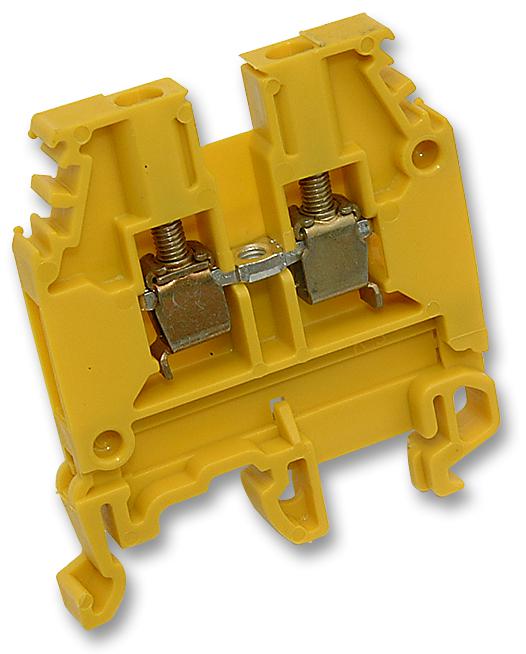

ENTRELEC - TE CONNECTIVITY - 010511616 - DIN Rail Mount Terminal Block, 2 Ways, 22 AWG, 10 AWG, 4 mm², Screw, 32 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 22AWG
  • Wire Size AWG Max: 10AWG
  • Conductor Area CSA: 4mm²
  • Wire Connection Method: Screw
  • Rated Current: 32A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: -
  • Colour: Yellow
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Length / Height: 53mm
  • External Width: 44.5mm
  • Material: Polyamide
  • Operating Temperature Max: 130°C
  • Operating Temperature Min: -50°C
  • Pitch Spacing: 6mm
  • Voltage Rating VAC: 750V
  • Wire Area Size Max: 4mm²
  • Wire Area Size Min: 0.22mm²
