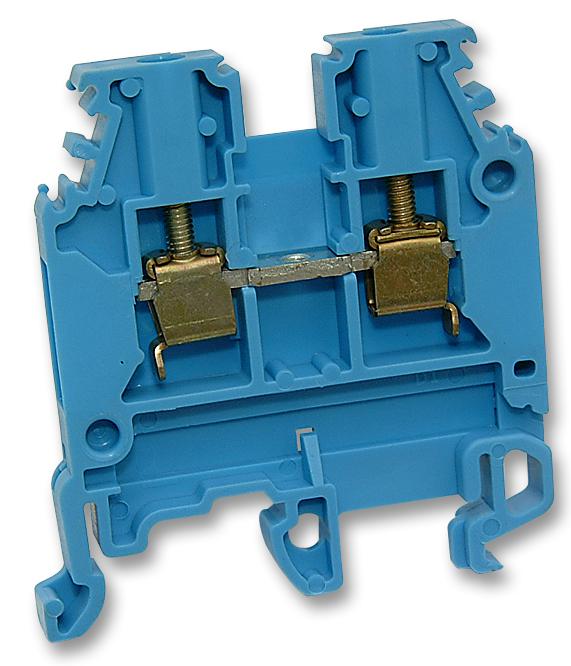

012548605 Terminal Block, DIN Rail, 2Pos, 6AWG Entrelec - Te Connectivity

ENTRELEC - TE CONNECTIVITYSKU:012548605 Bestelcode:530438

Prijs:
Actie prijs€3,46

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1093 units)

Documenten en downloads

Omschrijving

ENTRELEC - TE CONNECTIVITY - 012548605 - DIN Rail Mount Terminal Block, 2 Ways, 24 AWG, 12 AWG, 2.5 mm², Screw, 24 A

  • No. of Positions: 2Ways
  • Wire Size AWG Min: 24AWG
  • Wire Size AWG Max: 12AWG
  • Conductor Area CSA: 2.5mm²
  • Wire Connection Method: Screw
  • Rated Current: 24A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: -
  • Approval Bodies: CSA, UL
  • Colour: Blue
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • External Length / Height: 53mm
  • External Width: 44.5mm
  • Material: Polyamide
  • Operating Temperature Max: 130°C
  • Operating Temperature Min: -50°C
  • Pitch Spacing: 5mm
  • Voltage Rating VAC: 750V
  • Wire Area Size Max: 4mm²
  • Wire Area Size Min: 0.22mm²
