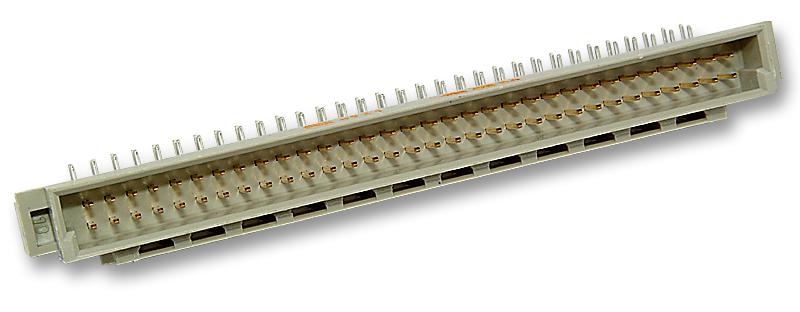

HARTING - 09 02 664 6921 - DIN 41612 Connector, Type B, 64 Contacts, Plug, 2.54 mm, 2 Row, a + b
- Product Range: Type B Series
- No. of Contacts: 64Contacts
- Gender: Plug
- Pitch Spacing: 2.54mm
- No. of Rows: 2 Row
- Rows Loaded: a + b
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- No. of Mating Cycles: 400
- SVHC: No SVHC (15-Jan-2018)
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 2A
- Flammability Rating: UL94V-0
- Lead Spacing: 2.54mm
- Material: Glass Filled Polyester
- Mating Force: 90N
- No. of Rows: 2Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -65°C
- Pin Length: 3mm
- Standard: VG95324 / DIN53480 / IEC112
- Termination Method: Solder
- Working Voltage: 250V
