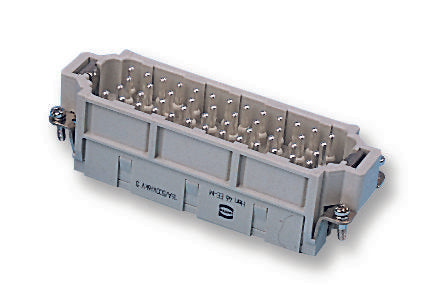

HARTING - 0932 018 3001 - Heavy Duty Connector, 18+PE, Less Contacts, Han EE, Insert, 18 Contacts, 10B, Plug
- Product Range: Han EE Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 18 Contacts
- Rectangular Shell Size: 10B
- Gender: Plug
- Heavy Duty Contact Type: Crimp Pin - Contacts Not Supplied
- Current Rating: 16A
- SVHC: No SVHC (15-Jan-2018)
- Contact Termination: Crimp
- For Use With: Han E Pin Crimp Contacts
- IP / NEMA Rating: IP65
- Insulation Resistance: 1010ohm
- No. of Contacts: 18Contacts
- No. of Positions: 19Ways
- No. of Rows: 4 Row
- No. of Rows: 4Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Range: 10B
- Voltage Rating: 500V
- Voltage Rating VAC: 500V
- Wire Area Size Max: 4mm²
- Wire Area Size Min: 0.5mm²
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 26AWG
- Working Voltage: 500V
