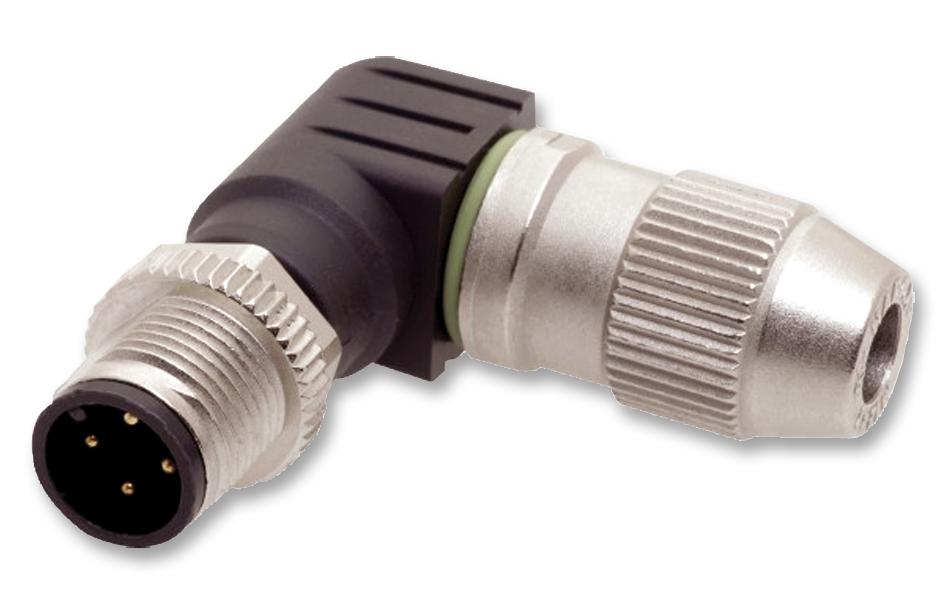

HARTING - 21 01 140 5081 - Sensor Connector, HARAX Series, M12, Male, 4 Positions, IDC / IDT Pin, Right Angle Cable Mount
- Product Range: HARAX Series
- Sensor Connector Size: M12
- Gender: Plug
- No. of Contacts: 4Contacts
- Sensor Contact Type: IDC / IDT Pin
- Sensor Connector Mounting: Right Angle Cable Mount
- IP / NEMA Rating: IP67
- Connector Coding: A Coded
- Connector Body Material: Nylon (Polyamide) Body
- Contact Material: Brass
- Contact Plating: Gold
- Current Rating: 4A
- Voltage Rating: 32V
- SVHC: No SVHC (15-Jan-2018)
- Cable Diameter Max: 5.1mm
- Cable Diameter Min: 4mm
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Termination: IDC / IDT
- For Use With: 4 Position M12 Sensors & Actuators
- Wire Area Size Max: 0.5mm²
- Wire Area Size Min: 0.25mm²
- Wire Size AWG Max: 20AWG
- Working Voltage: 32V
