Omschrijving

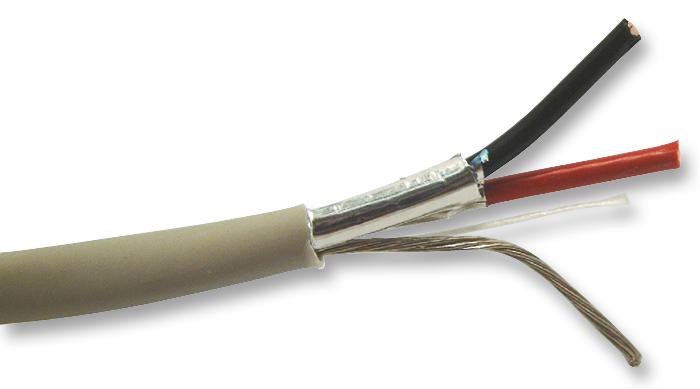

BELDEN - 4300FE.00100 - Multicore Cable, Security Alarm, Screened, 2 Core, 18 AWG, 0.823 mm², 328 ft, 100 m
- Cable Shielding: Screened
- No. of Cores: 2Core
- Wire Gauge: 18AWG
- Conductor Area CSA: 0.823mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.405mm
- Conductor Material: Copper
- Jacket Material: PE
- External Diameter: 4.2mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Foil Shield
- Conductor Make-up: 7 / 26AWG
- Core - Core Capacitance: 125pF/m
- Core-Screen Capacitance: 224pF/m
- Current Rating: 3.5A
- Drain Wire Type: 18 AWG
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Outer Diameter: 4.2mm
- Secondary Insulation Material: PE
- Wire Size: 18AWG
