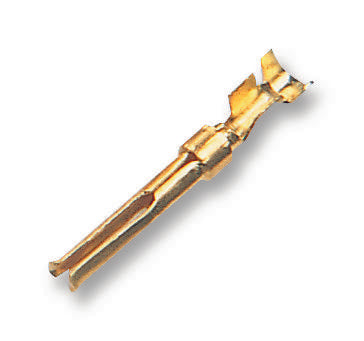

AMP - TE CONNECTIVITY - 66505-9 - D Sub Contact, HDP-20 Series Connectors, Socket, Brass, Gold Plated Contacts, 24 AWG, 28 AWG
- For Use With: HDP-20 Series Connectors
- Contact Gender: Socket
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Wire Size AWG Max: 24AWG
- Wire Size AWG Min: 28AWG
- Contact Termination Type: Crimp
- Product Range: AMPLIMITE HDP-20 Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 1.02mm
- Cable Diameter Min: 0.03"
- Contact Resistance: 15mohm
- Contact Termination: Crimp
- Contact Type: Stamped
- Current Rating: 7.5A
- Gender: Receptacle
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Wire Area Size Max: 0.2m²
- Wire Area Size Min: 0.08m²
- Wire Size: 24AWG
- Wire Size (AWG): 28AWG to 24AWG
