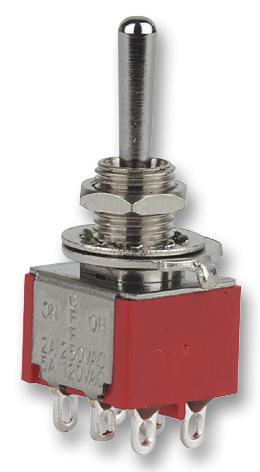

A205SYZQ04 Toggle Switch, DPDT, On-Off-On Te Connectivity

TE CONNECTIVITYSKU:A205SYZQ04 Bestelcode:1436236

Prijs:
Actie prijs€7,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (277 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - A205SYZQ04 - Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, A, Panel Mount, 5 A

  • Switch Operation: (On)-Off-(On)
  • Contact Configuration: DPDT
  • Illumination: Non Illuminated
  • Product Range: A Series
  • Contact Current Max: 5A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 250V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 30V
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Long Bat Lever
  • Bush Diameter: 7.98mm
  • Bush Thread Length: 7.11mm
  • Contact Current @ Contact Voltage AC Max: 2A
  • Contact Current @ Contact Voltage AC Min: 5A
  • Contact Current @ Contact Voltage DC Max: 2A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Resistance: 30mohm
  • Contact Voltage AC Max: 250VAC
  • Contact Voltage AC Min: 125VAC
  • Contact Voltage DC Max: 30VDC
  • External Depth: 11.43mm
  • External Length / Height: 28.4mm
  • External Width: 12.7mm
  • Height: 9.09mm
  • Lead Length: 3.94mm
  • Lever Length: 10.41mm
  • Material: Thermoset
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Shaft Diameter: 2.92mm
  • Tab Width: 2.03mm
  • Thread Size: 1/4 - 40
