Omschrijving

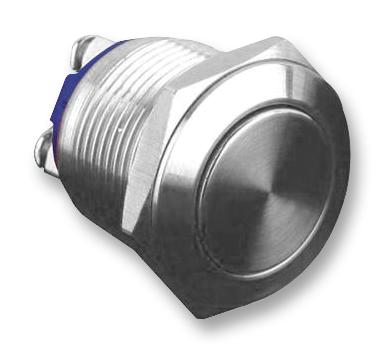

MULTICOMP PRO - AV01-B22-M1-F-IP65 - Vandal Resistant Switch, 19 mm, SPST, Off-(On), Flush, Natural
- Contact Configuration: SPST
- Actuator / Cap Colour: Natural
- Product Range: -
- Switch Operation: Off-(On)
- Illumination Colour: Non-illuminated
- Switch Terminals: Screw
- Contact Current Max: 2A
- Contact Voltage AC Max: -
- Operating Force: 4N
- Contact Voltage DC Max: 36V
- SVHC: No SVHC (15-Jan-2018)
- Contact Current DC Max: 2A
- Contact Resistance: 50mohm
- Contact Voltage VDC: 36V
- Dielectric Strength VDC: 2000V
- IP / NEMA Rating: IP65
- IP Rating: IP65
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 200000
- Operating Temperature Max: 55°C
- Operating Temperature Min: -20°C
- Panel Cutout Diameter: 19mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Anti-Vandal
- Switch Mounting: Panel
