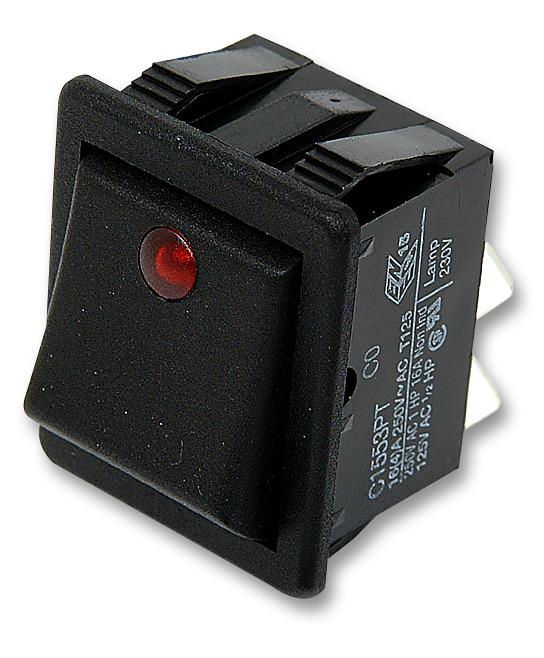

C1553PTNAB Rocker Switch, DPST, Illum Red Arcolectric (Bulgin Limited)

ARCOLECTRIC (BULGIN LIMITED)SKU:C1553PTNAB Bestelcode:150557

Prijs:
Actie prijs€11,14

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (384 units)

Documenten en downloads

Omschrijving

ARCOLECTRIC (BULGIN LIMITED) - C1553PTNAB - Rocker Switch, Off-On, DPST, Illuminated, Panel Mount, Black, 1550

  • Illumination: Illuminated
  • Contact Configuration: DPST
  • Switch Operation: Off-On
  • Actuator / Cap Colour: Black
  • Switch Mounting: Panel
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Product Range: 1550 Series
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA, ENEC, UL
  • Bezel Height: 25mm
  • Bezel Width: 30.2mm
  • Colour: Red - Spot (Illumination)
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 16A
  • Contact Resistance: 10Mohm
  • Contact Voltage AC Max: 250V
  • External Depth: 16.2mm
  • Illumination Colour: Red
  • Insulation Resistance: 20Mohm
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 50000
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: 0°C
  • Panel Cutout Size: 22.3 x 28.2 mm
  • Panel Cutout Width: 22.3mm
  • Panel Cutout length: 28.2mm
  • Tab Blade Thickness: 0.8mm
  • Tab Width: 6.35mm
