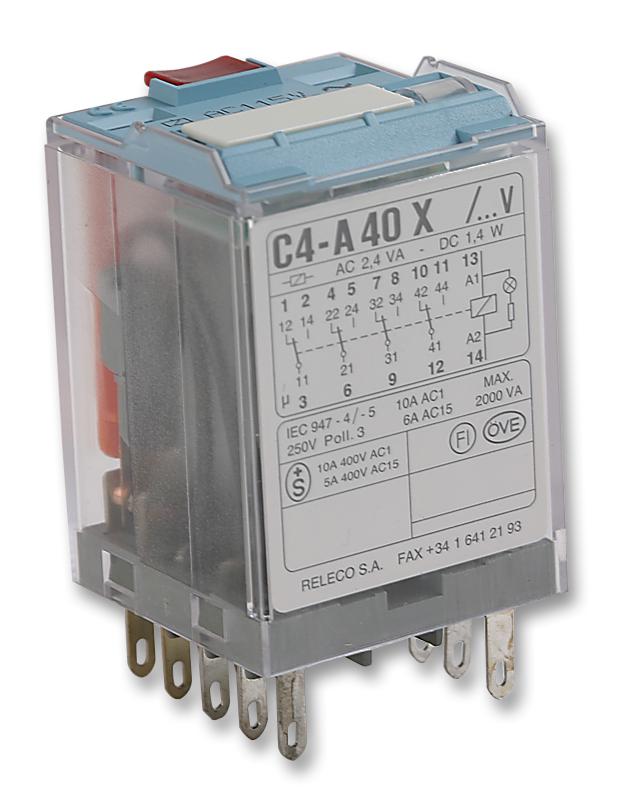

RELECO - C4-A40X115A - General Purpose Relay, C4 Series, Power, 4PDT, 115 VAC, 10 A
- Contact Configuration: 4PDT
- Coil Voltage: 115VAC
- Contact Current: 10A
- Product Range: C4 Series
- Relay Mounting: Socket
- Coil Type: -
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Nickel
- Coil Resistance: 1.7kohm
- SVHC: No SVHC (15-Jan-2019)
- AC Coil Power: 2.3VA
- Approval Bodies: CSA, DEMKO, FEMKO, LLOYDS, NEMKO, OVE, SEMKO, SEV, UL
- Coil Current: 21mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VAC Nom: 115V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Voltage AC Max: 230V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 250V
- Contact Voltage DC Nom: 30V
- Dielectric Strength VDC: 2500V
- External Depth: 35mm
- External Height: 53mm
- External Length / Height: 53mm
- External Width: 35mm
- Nom Operating Power: 2.4VA
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Operating Time: 18ms
- Release Time: 10ms
