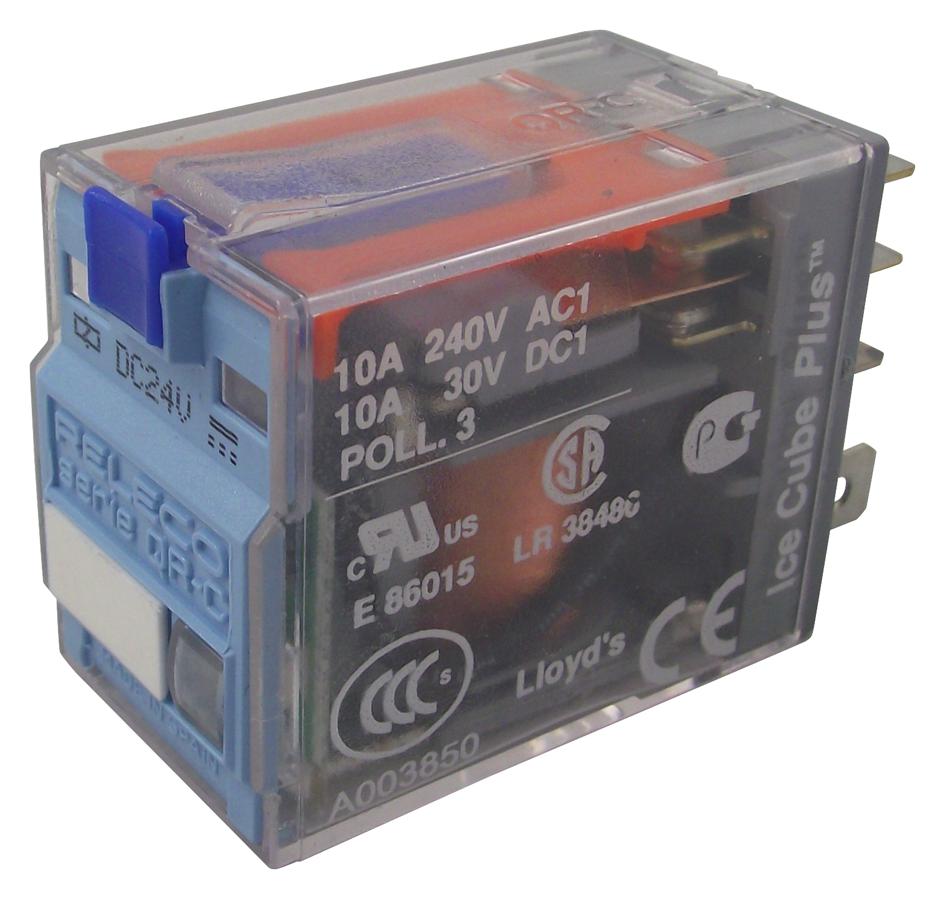

C7-A20X24D Relay, DPDT, 250VAC, 30Vdc, 10A RELECO

RELECOSKU:C7-A20X24D Bestelcode:1086871

Prijs:
Actie prijs€38,22

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (176 units)

Documenten en downloads

Omschrijving

RELECO - C7-A20X24D - General Purpose Relay, C7 Series, Power, DPDT, 24 VDC, 10 A

  • Contact Configuration: DPDT
  • Coil Voltage: 24VDC
  • Contact Current: 10A
  • Product Range: C7 Series
  • Relay Mounting: Socket
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 174ohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, SEV, UL
  • Coil Current: 43mA
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 110V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 0.9W
  • External Depth: 28mm
  • External Height: 37mm
  • External Length / Height: 37mm
  • External Width: 21mm
  • Nom Operating Power: 1W
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Operating Time: 10ms
  • Relay Type: Power - General Purpose
  • Release Time: 6ms
