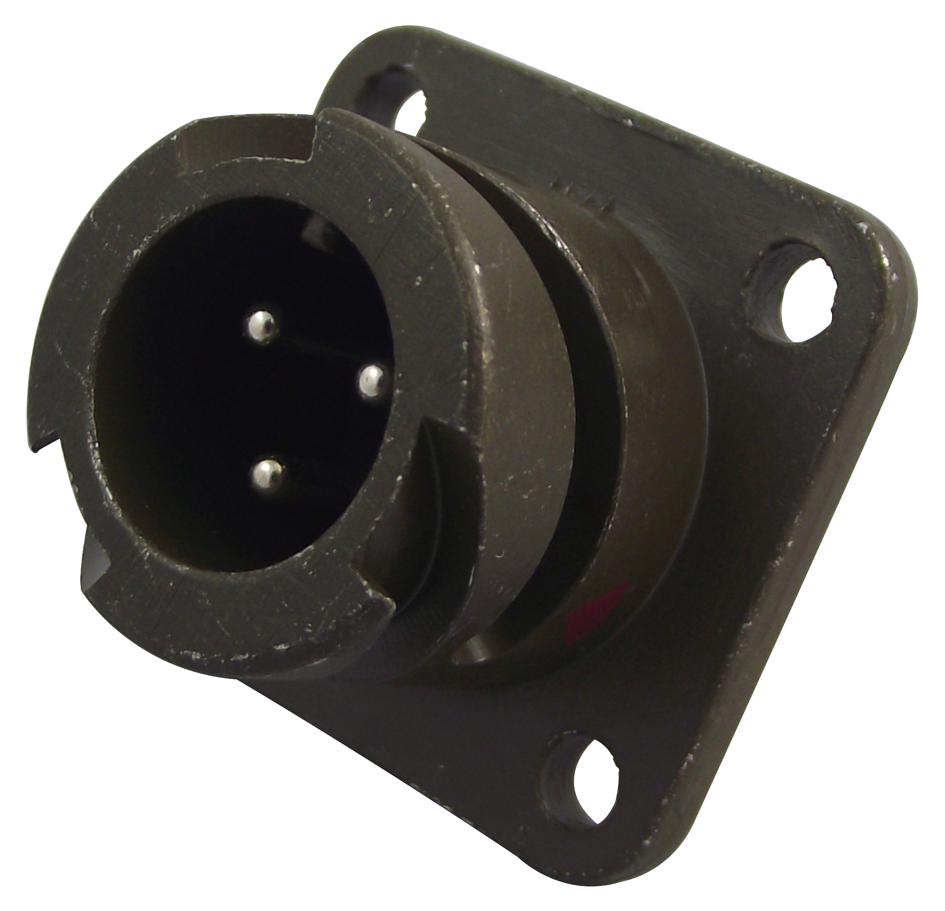

ITT CANNON - CA3102E10SL-3PB - Circular Connector, CA-B, Box Mount Receptacle, 3 Contacts, Solder Pin, Reverse Bayonet, 10SL-3
- Product Range: CA-B Series
- Circular Connector Shell Style: Box Mount Receptacle
- No. of Contacts: 3Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Reverse Bayonet
- Insert Arrangement: 10SL-3
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Copper Alloy
- Contact Plating: Silver
- Insert Rotation: N
- Service Class: Environmentally Sealed
- Equivalent Military Specification: MIL-DTL-5015 Series
- Body Plating: Olive Drab Chromate
- Current Rating: 13A
- IP / NEMA Rating: IP67
- Insulation Resistance: 5000Mohm
- No. of Mating Cycles: 100
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Size: 16
- Standard: MIL-C-5015
- Voltage Rating V DC: 250V
- Voltage Rating VAC: 200V
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 20AWG
- Working Voltage: 500V
