Omschrijving

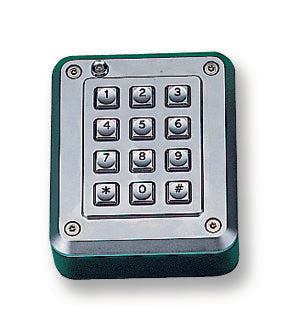

STORM INTERFACE - DE1KT101 - Keypad, STRIKEMASTER, 3 x 4, Matrix, Chromed Zinc
- Product Range: STRIKEMASTER Series
- Keypad Array: 3 x 4
- Keypad Output: Matrix
- Housing Material: Chromed Zinc
- Contact Current Max: -
- Contact Voltage DC Nom: -
- No. of Keys: 12
- Panel Cutout Width: 99.5mm
- Panel Cutout Height: 118.5mm
- SVHC: No SVHC (27-Jun-2018)
- Case Material: Metal
- Colour: Silver
- Contact Voltage DC Max: 28V
- External Depth: 15mm
- External Length / Height: 118mm
- External Width: 99.5mm
- Fixing Centres LxW: 74 mm x 93mm
- Height: 118.5mm
- IP / NEMA Rating: IP65
- Material: Metal
- No. of Mechanical Operations: 2
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Output Power Max: 12W
- Power Rating: 12W
- Static Resistance: 12.5kV
- Supply Voltage AC Max: 20V
- Supply Voltage AC Min: 9V
- Supply Voltage DC Max: 28V
- Supply Voltage DC Min: 11V
