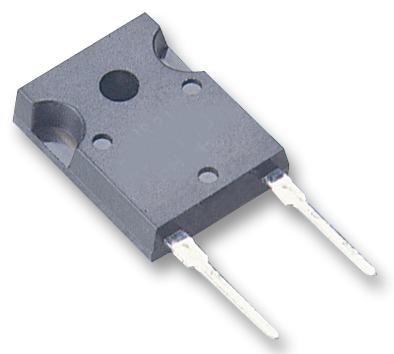

DPG60I400HA Diode, Fast, TO-247AC IXYS Semiconductor

IXYS SEMICONDUCTORSKU:DPG60I400HA Bestelcode:1572548

Prijs:
Actie prijs€8,62

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (81 units)

Documenten en downloads

Omschrijving

IXYS SEMICONDUCTOR - DPG60I400HA - Fast / Ultrafast Diode, Epitaxial Diode (FRED), 400 V, 60 A, Single, 1.22 V, 45 ns, 600 A

  • Repetitive Reverse Voltage Vrrm Max: 400V
  • Forward Current If(AV): 60A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.22V
  • Reverse Recovery Time trr Max: 45ns
  • Forward Surge Current Ifsm Max: 600A
  • Operating Temperature Max: 175°C
  • Diode Case Style: TO-247
  • No. of Pins: 2 Pin
  • Product Range: DPG60 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (12-Jan-2017)
  • Current Ifsm: 600A
  • Current Ir Max: 1µA
  • Diode Type: Fast Recovery
  • Junction Temperature Tj Max: 175°C
  • No. of Pins: 2Pins
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Power Dissipation Ptot Max: 275W
  • Reverse Recovery Time trr Typ: 45ns
  • Termination Type: Through Hole
