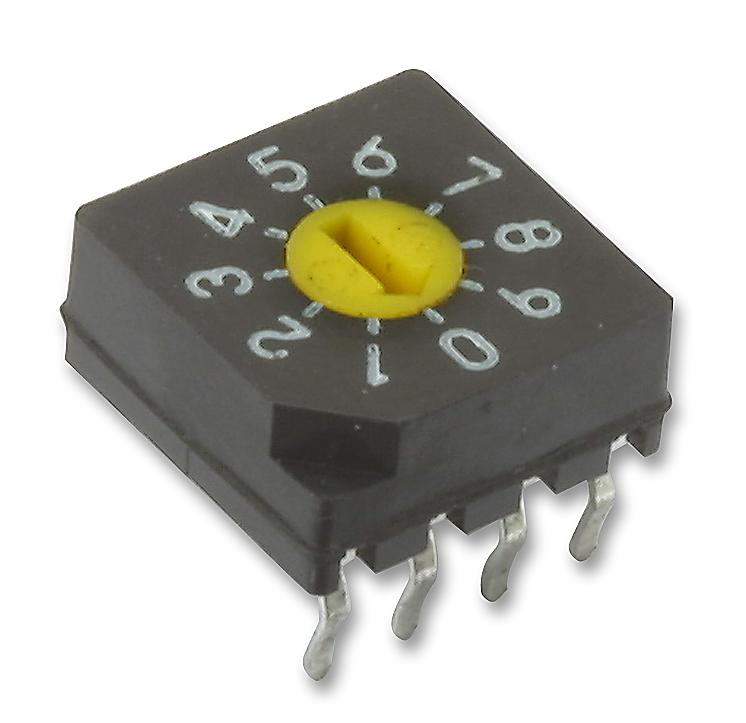

KNITTER-SWITCH - DRS3010 - Rotary Coded Switch, DRS3000, Through Hole, 10 Position, 50 VDC, BCD, 100 mA
- Product Range: DRS3000 Series
- Switch Mounting: Through Hole
- No. of Switch Positions: 10 Position
- Switching Voltage: 50VDC
- Output Code: BCD
- Switching Current: 100mA
- Switch Construction: Sealed
- Actuator Level: Flushed
- SVHC: No SVHC (15-Jan-2018)
- Angle: 36°
- Angle of Throw: 36°
- Contact Current @ Contact Voltage DC Max: 30mA
- Contact Current DC Max: 30mA
- Contact Current Rating: 100mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 50V
- Dielectric Strength VDC: 250V
- External Depth: 10mm
- External Length / Height: 4.8mm
- External Width: 10mm
- Indexing Angle: 36°
- No. of Mechanical Operations: 20000
- No. of Positions: 10Ways
- Operating Temperature Max: 75°C
- Operating Temperature Min: -25°C
- Pin Configuration: 0.65x0.35mm
