DUA52C724 Relay, Voltage Sensing, SPDT, 24Vdc Carlo GAVAZZI

CARLO GAVAZZISKU:DUA52C724 Bestelcode:7330782

Prijs:
Actie prijs€113,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (94 units)

Documenten en downloads

Omschrijving

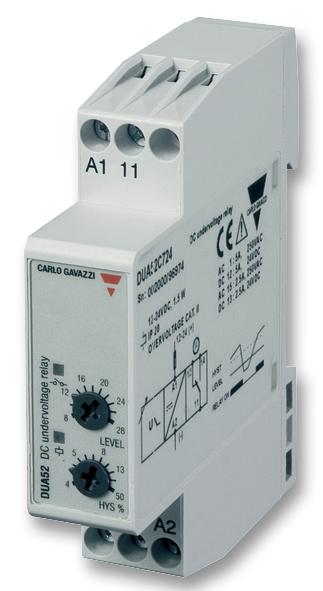

CARLO GAVAZZI - DUA52C724 - Voltage Monitoring Relay, DUA, SPDT, 5 A, DIN Rail, 250 VAC, Screw

  • Product Range: DUA Series
  • Contact Configuration: SPDT
  • Contact Current: 5A
  • Relay Mounting: DIN Rail
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: 24VDC
  • Supply Voltage Max: 24VDC
  • Power Consumption: 1.5W
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 24V
  • Control Voltage Type: DC
  • Current Rating: 5A
  • External Depth: 67mm
  • External Length / Height: 81.5mm
  • External Width: 17.5mm
  • Hysteresis: 4 - 50%
  • Input Voltage: 48VDC
  • Input Voltage Max: 24VDC
  • Input Voltage Min: 12VDC
  • Isolation Voltage: 250VAC
  • Measuring Range: 8V DC to 28V DC, 38V DC to 58V DC
  • Nom Input Voltage: 24VDC
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Power Rating: 1.5W
  • Supply Voltage: 24V
