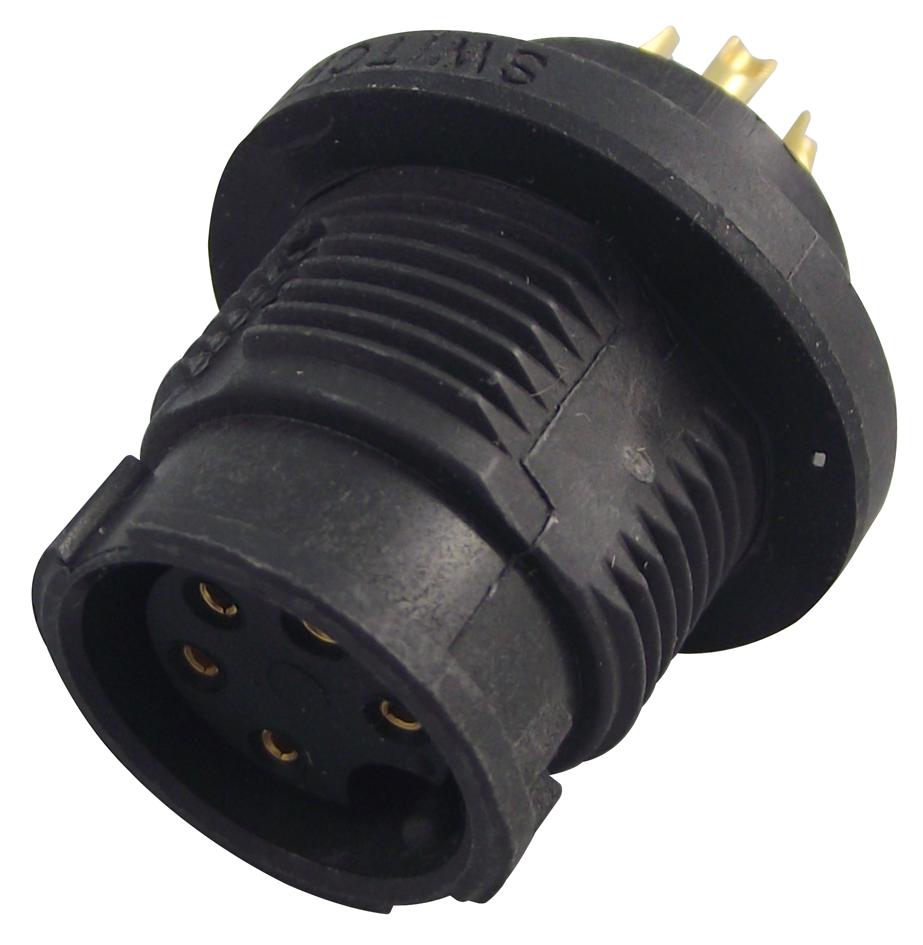

EN3P5F-F Socket, Panel, 5WAY SWITCHCRAFT/CONXALL

SWITCHCRAFT/CONXALLSKU:EN3P5F-F Bestelcode:1685965

Prijs:
Actie prijs€38,74

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (33 units)

Documenten en downloads

Omschrijving

SWITCHCRAFT/CONXALL - EN3P5F-F - Circular Connector, EN3 Series, Panel Mount Receptacle, 5 Contacts, Solder Socket, Bayonet

  • Product Range: EN3 Series
  • Circular Connector Shell Style: Panel Mount Receptacle
  • No. of Contacts: 5Contacts
  • Circular Contact Type: Solder Socket
  • Coupling Style: Bayonet
  • Connector Body Material: Thermoplastic, Glass Filled Body
  • Connector Body Plating: -
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Category: UL 94V-0
  • Cable Diameter Max: 7mm
  • Cable Diameter Min: 5mm
  • Connector Mounting: Panel Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 3.1mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 7.5A
  • Dielectric Strength: 600V/m
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP68
  • Insulation Resistance: 100Mohm
  • No. of Mating Cycles: 600
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -40°C
  • Panel Thickness Max: 4.76mm
  • Panel Thickness Min: 0.79mm
  • Voltage Rating VAC: 600V
