ERG10-412/6 Switch, BCD, Blue Erg Components

ERG COMPONENTSSKU:ERG10-412/6 Bestelcode:1203414

Prijs:
Actie prijs€38,15

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (381 units)

Documenten en downloads

Omschrijving

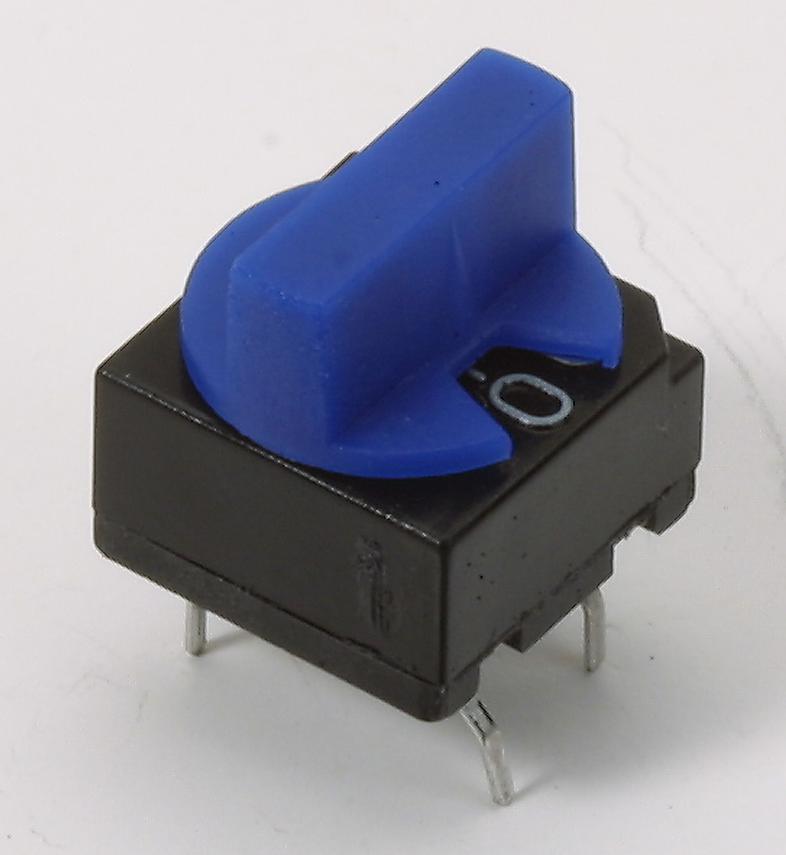

ERG COMPONENTS - ERG10-412/6 - Rotary Coded Switch, Through Hole, 10 Position, 30 V, BCD, 125 mA

  • Product Range: -
  • Switch Mounting: Through Hole
  • No. of Switch Positions: 10 Position
  • Switching Voltage: 30V
  • Output Code: BCD
  • Switching Current: 125mA
  • Switch Construction: Sealed
  • Actuator Level: Raised
  • SVHC: No SVHC (17-Dec-2015)
  • Angle: 36°
  • Angle of Throw: 36°
  • Colour: Blue
  • Contact Current @ Contact Voltage DC Max: 125mA
  • Contact Current AC Max: 125mA
  • Contact Current DC Max: 125mA
  • Contact Current Rating: 125mA
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 30V
  • Contact Voltage DC Max: 30V
  • Contact to Contact Capacitance: 5pF
  • Dielectric Strength VDC: 250V
  • Indexing Angle: 36°
  • Insulation Resistance Voltage: 240V
  • Material: Black polyamide UL rated
  • No. of Mechanical Operations: 20000
  • No. of Positions: 10Ways
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -55°C
