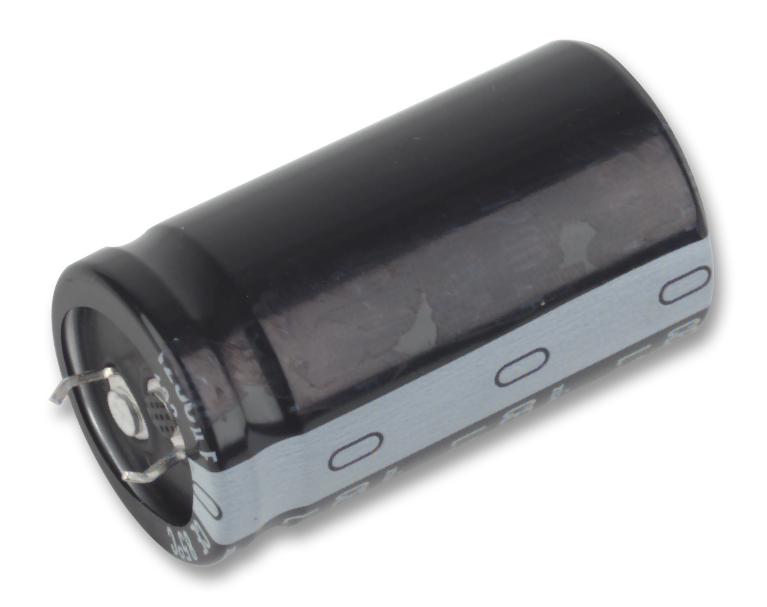

LLS2W221MELB Cap, 220µF, 450V, Alu Elec, Snap In NICHICON

NICHICONSKU:LLS2W221MELB Bestelcode:8813400

Prijs:
Actie prijs€8,79

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (103 units)

Documenten en downloads

Omschrijving

NICHICON - LLS2W221MELB - Electrolytic Capacitor, Snap-in, 220 µF, 450 V, ± 20%, Snap-In, 3000 hours @ 85°C

  • Capacitance: 220µF
  • Voltage Rating: 450V
  • Product Range: LS Series
  • Lifetime @ Temperature: 3000 hours @ 85°C
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Quick Connect, Snap-In
  • Diameter: 30mm
  • Lead Spacing: 10mm
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 85°C
  • Height: 30mm
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 30mm
  • No. of Pins: 2Pins
  • Operating Life Temperature: 85°C
  • Operating Temperature Range: -25°C to +85°C
  • Operating life Time: 3000h
  • PCB Hole Diameter: 2mm
  • Ripple Current AC: 1.64A
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 450V
