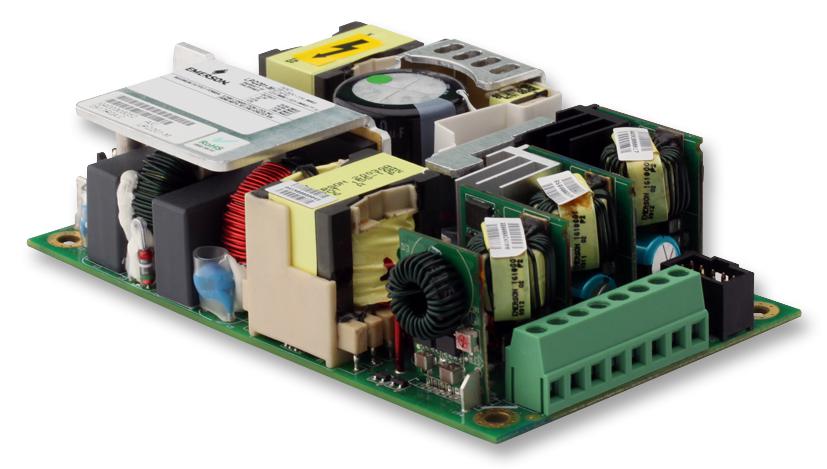

ARTESYN EMBEDDED TECHNOLOGIES - LPQ201-M - AC/DC Open Frame Power Supply (PSU), Medical, 4 Output, 200W @ 30CFM, 100 W, 90V AC to 264V AC
- No. of Outputs: 4 Output
- Power Rating (Covection Cooling): 100W
- Power Rating (Forced Cooling): 200W @ 30CFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 13A
- Output Voltage - Output 2: 5V
- Output Current - Output 2: 13A
- Output Voltage - Output 3: 12V
- Output Current - Output 3: 5A
- Output Voltage - Output 4: -12V
- Current, Output 4: 2A
- Product Range: LPQ200-M Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approvals / Standards: CSA 60601, UL 60601
- Height: 33.53mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 127mm
- No. of Outputs: 4Outputs
- Output Power Max: 100W
- Power Rating: 200W
- Power Supply Type: Open Frame
- Width: 76.2mm
