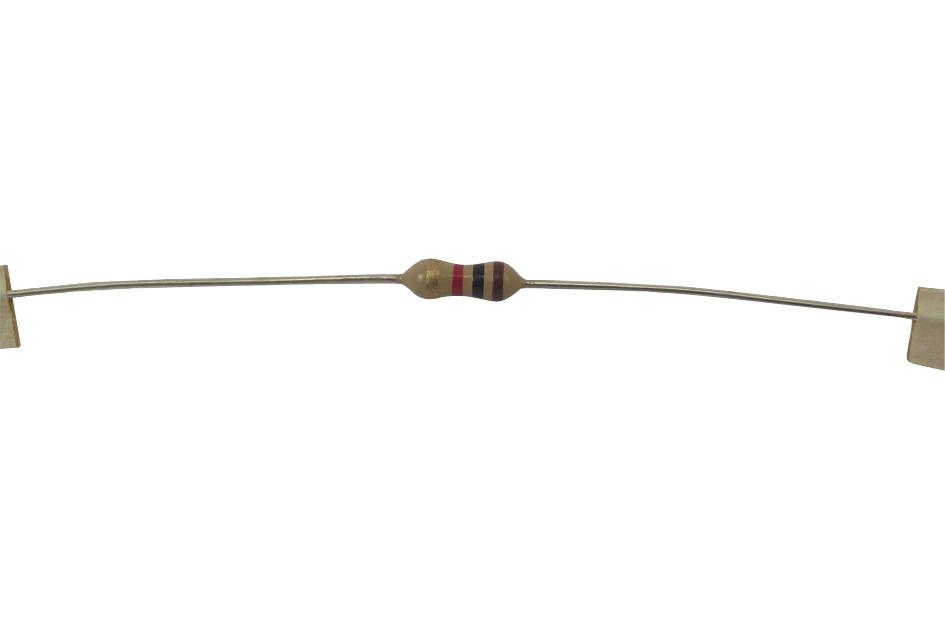

MCF 0.25W 15K Res, 15K, 5%, 250MW, Axial, Carbon Film multicomp Pro

MULTICOMP PROSKU:MCF 0.25W 15K Bestelcode:9339191

Prijs:
Actie prijs€0,12

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (15983 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCF 0.25W 15K - Through Hole Resistor, 15 kohm, MCF, 250 mW, ± 5%, Axial Leaded, 250 V

  • Resistance: 15kohm
  • Product Range: MCF Series
  • Power Rating: 250mW
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 250V
  • Resistor Element Material: Carbon Film
  • Temperature Coefficient: ± 450ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 2.5mm
  • Box Quantity: 2000
  • External Length / Height: 6.8mm
  • Full Power Rating Temperature: 70°C
  • Insulation Resistance: 10000Mohm
  • Lead Diameter: 0.54mm
  • Lead Length: 28mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Overload Voltage: 500V
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 450ppm/°C
  • Temperature Coeff. -: 450ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 250V
  • Withstand Voltage: 500V
