MCRH3AF-10R Rotary Dip Switch multicomp Pro

MULTICOMP PROSKU:MCRH3AF-10R Bestelcode:1522029

Prijs:
Actie prijs€4,41

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1413 units)

Documenten en downloads

Omschrijving

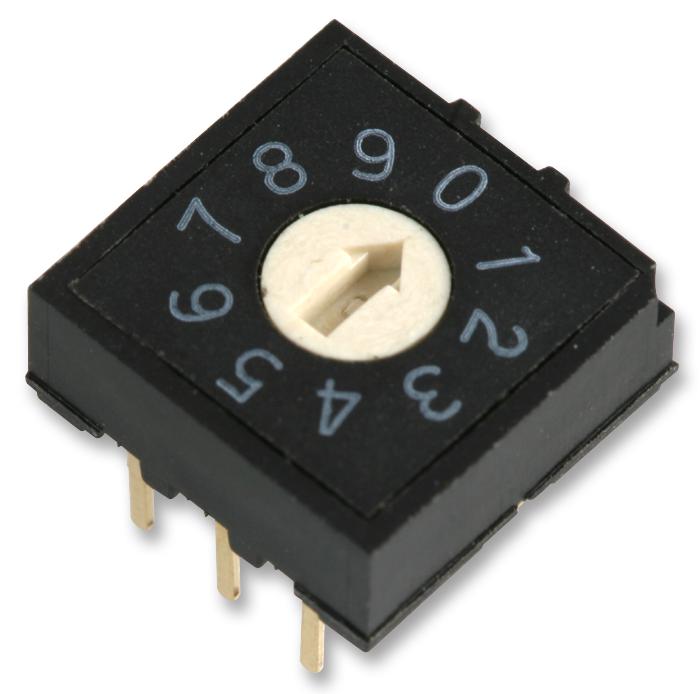

MULTICOMP PRO - MCRH3AF-10R - Rotary Coded Switch, MCRH, Through Hole, 10 Position, 24 VDC, BCD, 25 mA

  • Product Range: MCRH Series
  • Switch Mounting: Through Hole
  • No. of Switch Positions: 10 Position
  • Switching Voltage: 24VDC
  • Output Code: BCD
  • Switching Current: 25mA
  • Switch Construction: -
  • Actuator Level: Flushed
  • SVHC: No SVHC (15-Jan-2019)
  • Bezel Width: 9.8mm
  • Contact Resistance: 200mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 50V
  • External Depth: 10mm
  • External Length / Height: 4.1mm
  • External Width: 10mm
  • Flammability Rating: UL 94V-0
  • Insulation Resistance Voltage: 250VDC
  • No. of Electrical Operations: 20000
  • No. of Mechanical Operations: 20000
  • Operating Force Max: 400gf
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -25°C
  • Proof Voltage: 250VAC
