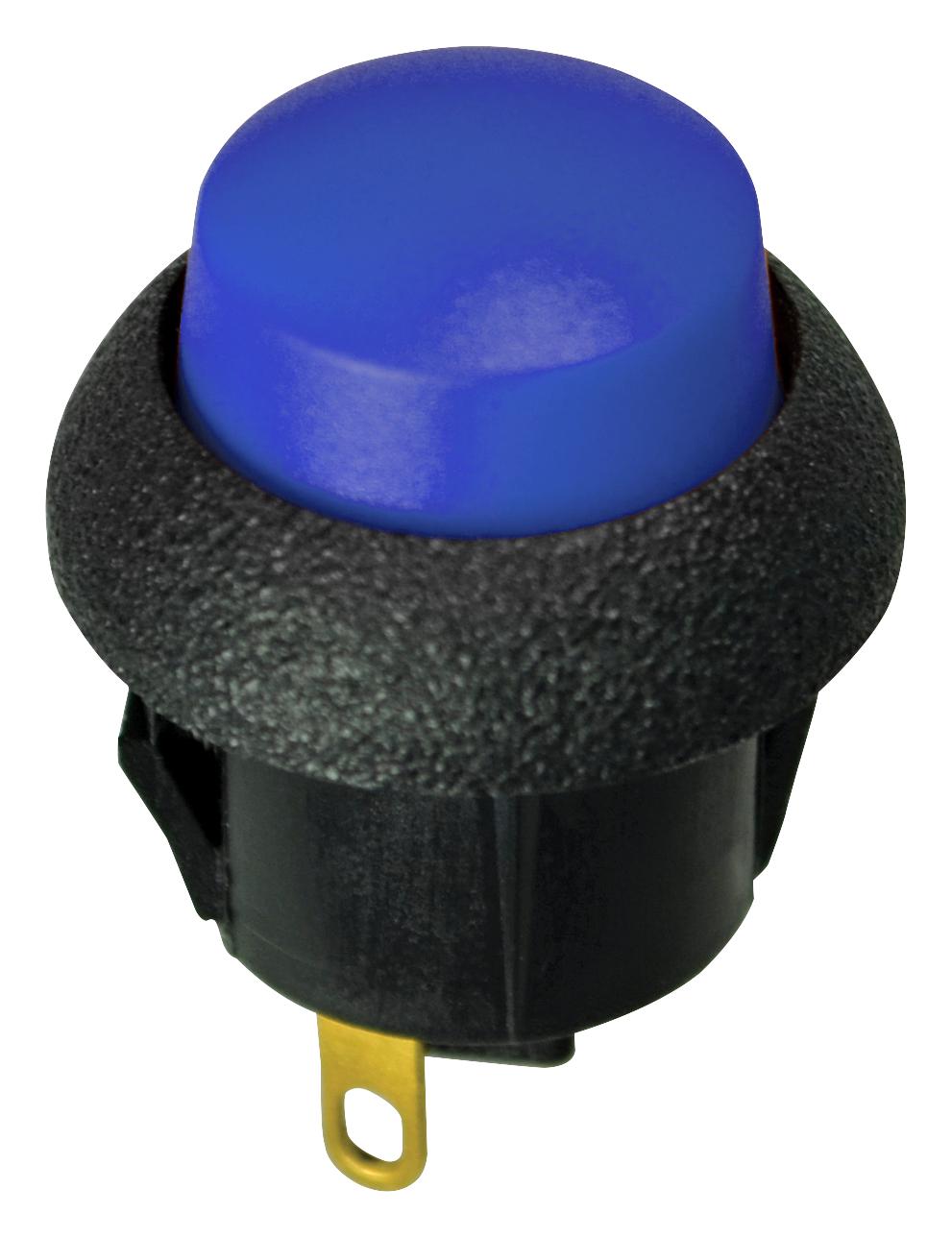

OTTO CONTROLS - P9-513126W - Industrial Pushbutton Switch, Watertight to IP68S, P9, 12 mm, SPDT-DB, Momentary, Flush, Blue
- Switch Operation: Momentary
- Contact Configuration: SPDT-DB
- Contact Voltage AC Nom: 115V
- Contact Voltage DC Nom: 28V
- Contact Current Max: 5A
- Switch Terminals: Solder Lug
- Product Range: P9 Series
- Actuator / Cap Colour: Blue
- Contact Current AC Max: 4A
- Contact Current DC Max: 4A
- Contact Voltage VAC: 115V
- Contact Voltage VDC: 28V
- IP Rating: IP69K, IP68S
- Illumination Colour: Non-illuminated
- Panel Cutout Diameter: 12mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Industrial
- Switch Mounting: Panel
