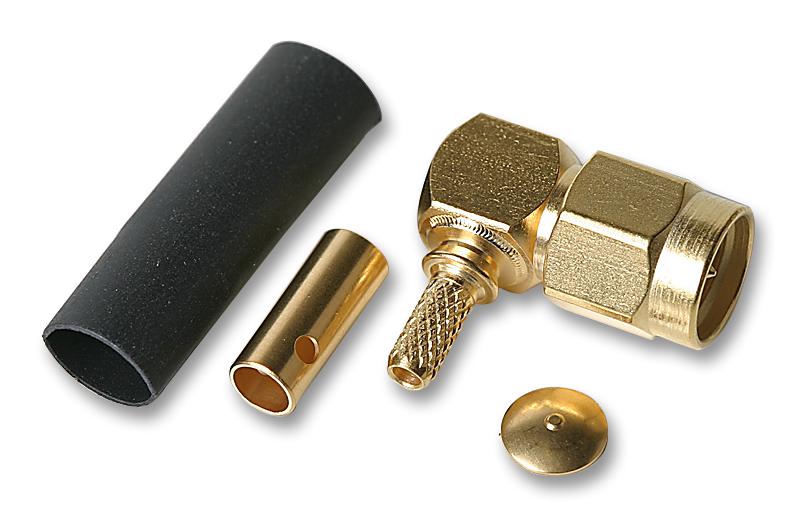

R125172000 RF Coaxial, Sma, Right Angle Plug, 50ohm RADIALL

RADIALLSKU:R125172000 Bestelcode:4194718

Prijs:
Actie prijs€29,78

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (55 units)

Documenten en downloads

Omschrijving

RADIALL - R125172000 - RF / Coaxial Connector, SMA Coaxial, Right Angle Plug, Solder, 50 ohm, RG316/U, Brass

  • Connector Type: SMA Coaxial
  • Connector Body Style: Right Angle Plug
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: RG316/U
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 12.4GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Gold
  • Coaxial Type: RG174 A/U, RG142, RG188 A/U, RG316/U, URM95, URM109, URM116, KX3B, KX22A
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 100
  • Operating Frequency Max: 12.4GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Crimp / Solder
  • Voltage Rating VAC: 250V
  • Withstand Voltage: 500V
