R161404C02 RF Coaxial, N, Straight Jack, 50ohm RADIALL

RADIALLSKU:R161404C02 Bestelcode:1740807

Prijs:
Actie prijs€7,99

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Omschrijving

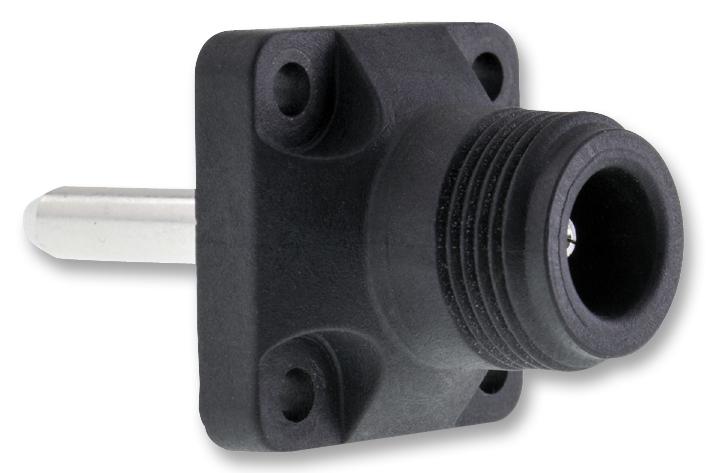

RADIALL - R161404C02 - RF / Coaxial Connector, N Coaxial, Straight Flanged Jack, Solder, 50 ohm, Bronze

  • Connector Type: N Coaxial
  • Connector Body Style: Straight Flanged Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Bronze
  • Contact Plating: Silver Plated Contacts
  • Frequency Max: -
  • Connector Mounting: Panel Mount
  • SVHC: No SVHC (12-Jan-2017)
  • Connector Mounting Orientation: Panel
  • Flammability Rating: UL94V-0
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Voltage Rating VAC: 850V
  • Withstand Voltage: 2500V
