Omschrijving

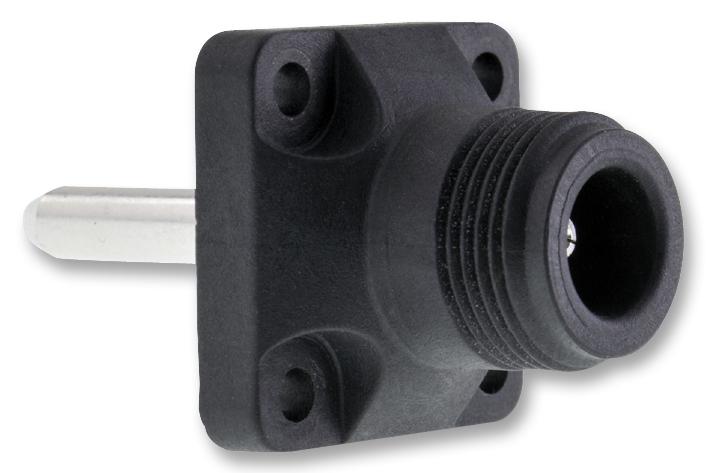

RADIALL - R161404C03 - RF / Coaxial Connector, N Coaxial, Straight Flanged Jack, Solder, 50 ohm, Bronze
- Connector Type: N Coaxial
- Connector Body Style: Straight Flanged Jack
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Bronze
- Contact Plating: Silver Plated Contacts
- Frequency Max: -
- Connector Mounting: Panel Mount
- SVHC: No SVHC (12-Jan-2017)
- Connector Mounting Orientation: Panel
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP67
- Insulation Resistance: 5000Mohm
- No. of Mating Cycles: 500
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Termination Method: Solder
- Voltage Rating VAC: 850V
- Withstand Voltage: 2500V
