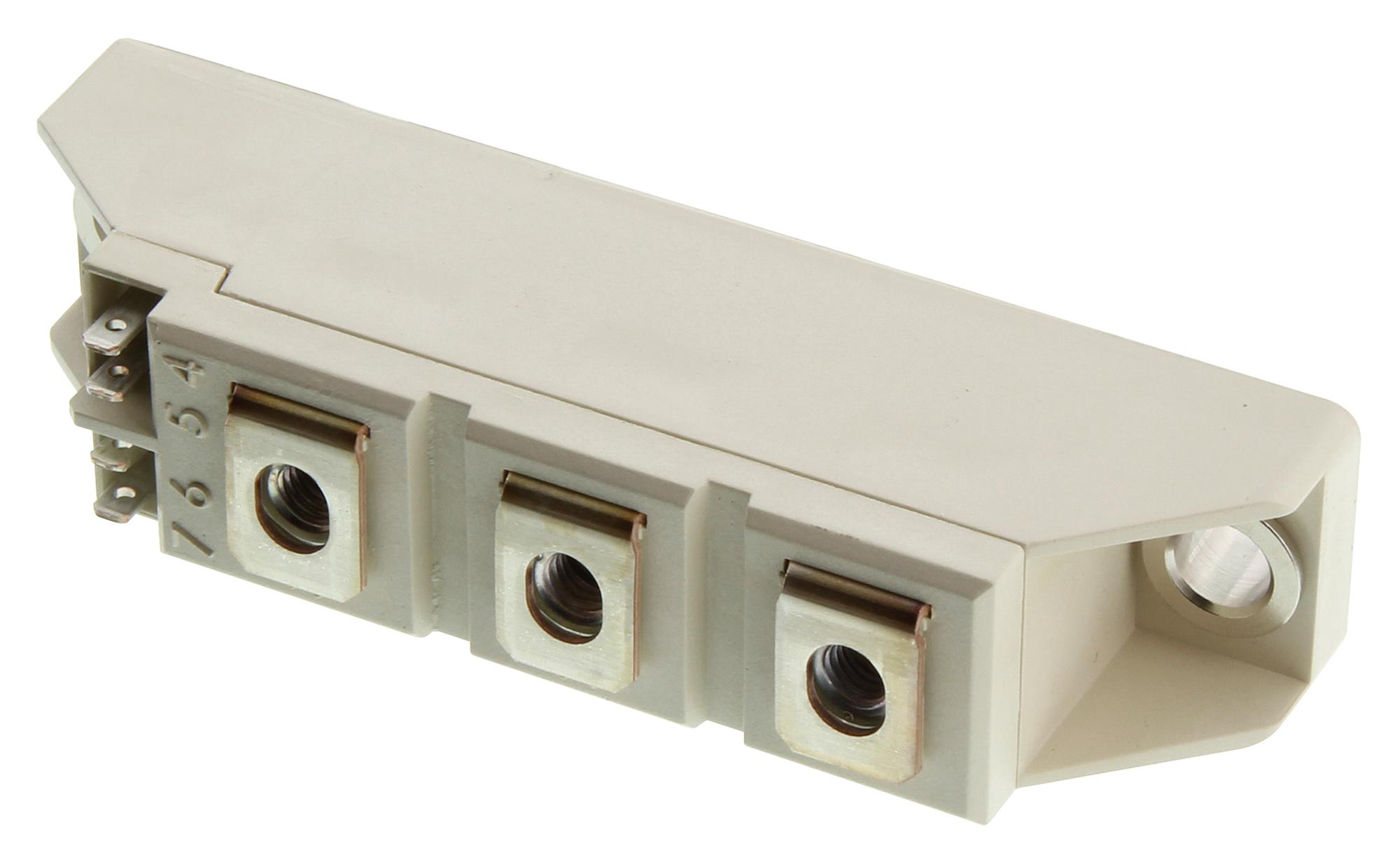

SEMIKRON - SKKT 162/12 E - Thyristor Module, Series Connected, 156 A, 1.2 kV
- SCR Module Type: Series Connected - SCRs
- Peak Repetitive Off-State Voltage, Vdrm: 1.2kV
- Gate Trigger Current Max, Igt: 150mA
- Current It av: 156A
- On State RMS Current IT(rms): 250A
- Peak Non Rep Surge Current Itsm 50Hz: 5.4kA
- Holding Current Max Ih: 400mA
- Gate Trigger Voltage Max Vgt: 2V
- Operating Temperature Max: 125°C
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- No. of Pins: 7Pins
- Thyristor Case: Module
- Thyristor Case Style: Module
