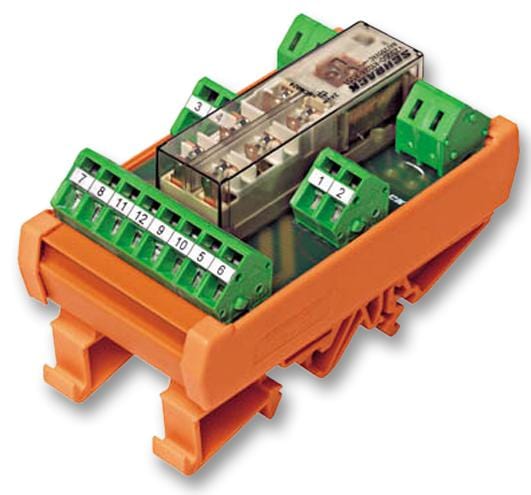

SCHRACK - TE CONNECTIVITY - 5-1415033-1 - Safety Relay, 24 VDC, 4PST-NO, DPST-NC, SR6Z, DIN Rail, 8 A, Cage Clamp
- Coil Voltage: 24VDC
- Contact Configuration: 4PST-NO, DPST-NC
- Product Range: SR6Z Series
- Relay Mounting: DIN Rail
- Contact Current: 8A
- Relay Terminals: Cage Clamp
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Material: Silver Tin Oxide
- IP Rating: -
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CE
- Approvals & Standards: VDE
- Coil Resistance: 480ohm
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 8A
- Contact Current Max: 8A
- Contact Voltage AC Max: 240V
- Current Min: 10mA
- Current Rating: 8A
- External Depth: 87mm
- External Height: 58mm
- External Length / Height: 58mm
- External Width: 46mm
- Operating Temperature Max: 50°C
- Operating Temperature Min: -25°C
- Supply Voltage: 240VAC
- Switching Capacity: 2000 VA
