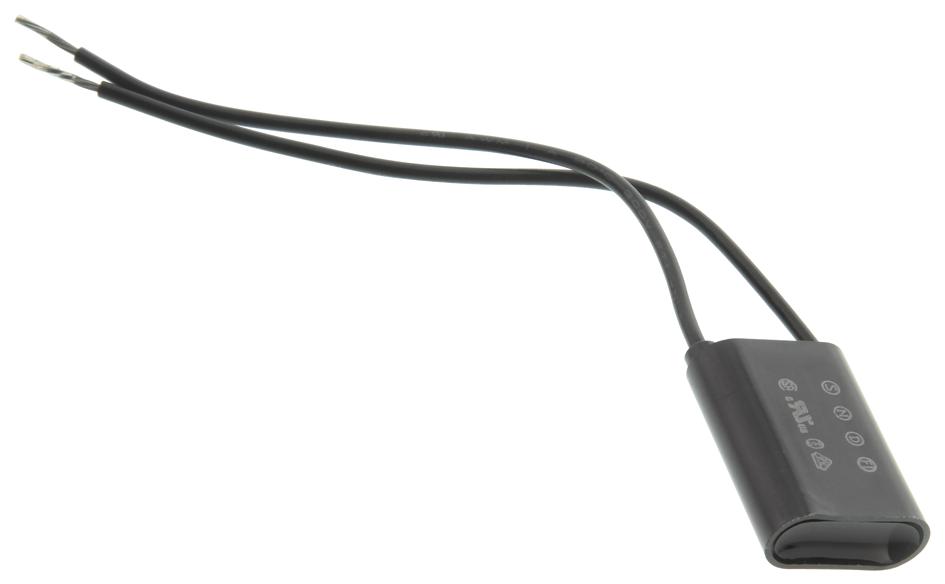

XEB1201 CAP, 0.1µF, 250VAC, 20% ROXBURGH EMC

ROXBURGH EMCSKU:XEB1201 Bestelcode:1187659

Prijs:
Actie prijs€8,59

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (26554 units)

Documenten en downloads

Omschrijving

ROXBURGH EMC - XEB1201 - RC Network, Flying Leads, 0.1 µF, ± 20%, 120 ohm, ± 30%, 500 mW, 250 V

  • Product Range: XEB Series
  • Capacitance: 0.1µF
  • Capacitance Tolerance: ± 20%
  • Resistance: 120ohm
  • Resistance Tolerance: ± 30%
  • Resistor Power Rating: 500mW
  • Voltage Rating VAC: 250V
  • Voltage Rating V DC: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: CSA, DEMKO, NEMKO, SEMKO, UL, VDE
  • Capacitance Tolerance +: 20%
  • Capacitance Tolerance -: 20%
  • Connector Type: Wire Leaded
  • Control Voltage AC Max: 250V
  • External Depth: 8.5mm
  • External Length / Height: 23mm
  • External Width: 19mm
  • Lead Diameter: 20mm
  • Lead Length: 100mm
  • No. of Phases: Single Phase
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Voltage Range: 250V AC to 500V AC
  • Power Dissipation Ptot Max: 0.5W
  • Resistance Tolerance +: 30%
  • Resistance Tolerance -: 30%
  • Suppressor Type: Mains
  • Voltage Rating: 250VAC
