Omschrijving

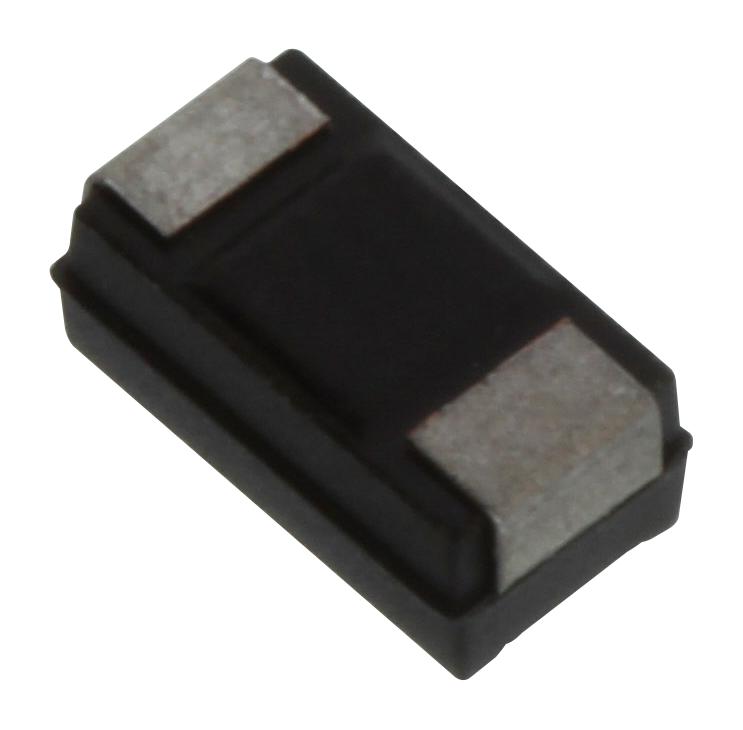

VISHAY FOIL RESISTORS - Y11212K00000T9R - SMD Chip Resistor, 2 kohm, ± 0.01%, 250 mW, 2412 [6032 Metric], Metal Foil, Precision
- Resistor Case Style: 2412 [6032 Metric]
- Resistance: 2kohm
- Product Range: SMR1D Series
- Voltage Rating: 54V
- Resistor Element Material: Metal Foil
- Power Rating: 250mW
- Resistance Tolerance: ± 0.01%
- Temperature Coefficient: ± 5ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- External Depth: 2.5mm
- External Length / Height: 6mm
- External Width: 3.2mm
- Full Power Rating Temperature: 70°C
- Load Life Stability +: 50
- Load Life Stability -: 50ppm/°C
- Operating Temperature Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Resistor Mounting: Surface Mount Device
- Rise Time: 1ns
- Shelf Life Stability +: 25PPM/yr
- Shelf Life Stability -: 25PPM/yr
- Temp Coeff Lower Limit Temperature: 0°C
- Temperature Coeff. +: 0.6ppm/°C
- Temperature Coeff. -: 0.6ppm/°C
- Temperature Upper Limit Temp Coeff: 60°C
- Thermal EMF: 0.1V/°C
- Tolerance +: 0.01%
- Tolerance -: 0.01%
- Voltage Rating V DC: 54V
- Voltage Rating VAC: 54V
