Description

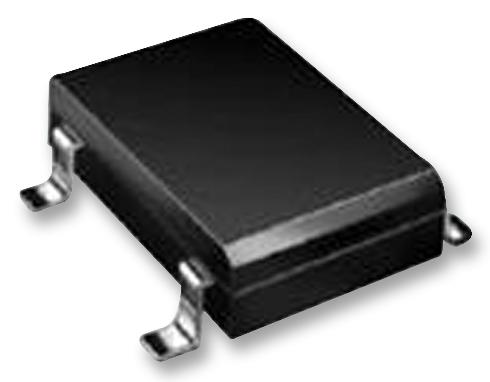

ONSEMI - MB1S - Bridge Rectifier, Single Phase, 100 V, 500 mA, SOIC, 4 Pins, 1 V
- No. of Phases: Single Phase
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 500mA
- Bridge Rectifier Case Style: SOIC
- Forward Voltage VF Max: 1V
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: MB1S Series
- SVHC: Lead (27-Jun-2018)
- Diode Case Style: SOIC
- Diode Mounting Type: SMD
- External Depth: 4.2mm
- External Length / Height: 3mm
- External Width: 4.9mm
- Forward Surge Current Ifsm Max: 35A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Pd: 1.4W
- RMS Input Voltage: 70V
- Termination Type: Surface Mount Device
