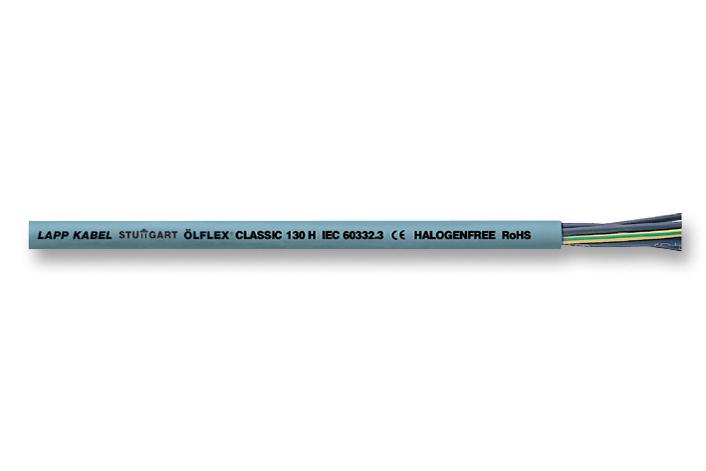

LAPP KABEL - 1123074 - Multicore Cable, LSZH, Unscreened, 7 Core, 1 mm², 164 ft, 50 m
- Cable Shielding: Unscreened
- No. of Cores: 7Core
- Wire Gauge: -
- Conductor Area CSA: 1mm²
- Reel Length (Imperial): 164ft
- Reel Length (Metric): 50m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: -
- Conductor Material: Copper
- Jacket Material: LSZH
- External Diameter: 8.1mm
- Voltage Rating: 500V
- Product Range: Halogen Free Series
- SVHC: No SVHC (15-Jan-2019)
- Bend Flexing Radius Min: 15
- Cable Type: Unshielded
- Core-Earth / Core-Core Voltage Rating: 300/500 V
- Flexing Temperature Max: 70°C
- Flexing Temperature Min: -15°C
- Installed Bend Radius Min: 4
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Secondary Insulation Material: Halogen Free Compound TM7
- Test Voltage: 4000V
