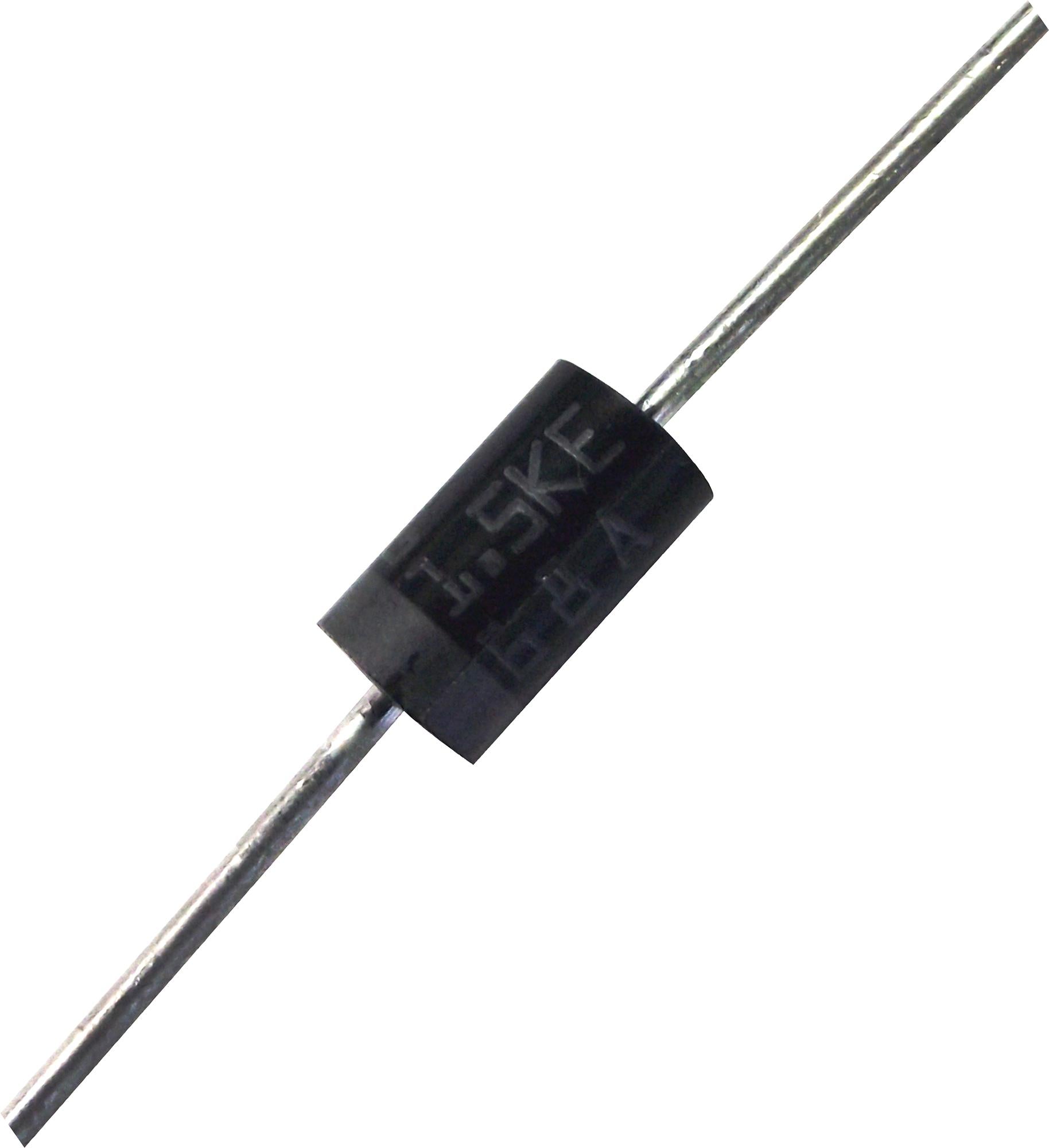

STMICROELECTRONICS - 1.5KE300CA - TVS Diode, Transil 1.5KE, Bidirectional, 256 V, 414 V, DO-201, 2 Pins
- Product Range: Transil 1.5KE Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 256V
- Clamping Voltage Vc Max: 414V
- Diode Case Style: DO-201
- No. of Pins: 2Pins
- Breakdown Voltage Min: 285V
- Breakdown Voltage Max: 315V
- Peak Pulse Power Dissipation: 1.5kW
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Breakdown Voltage: 300V
- Breakdown Voltage Range: 285V to 315V
- Breakover Voltage Min: 285V
- Capacitance Cd @ Vr Typ: 500pF
- Clamping Voltage @ 8/20µs Max: 529V
- Current Ir Max: 1µA
- Current Ir Vbr Measurement Min: 1mA
- Current Itsm: 200A
- Diode Type: Bidirectional TVS
- External Length / Height: 9.52mm
- Full Power Rating Temperature: 75°C
- JEDEC Number: 1N6284CA
- Lead Diameter: 1.06mm
- Peak Pulse Current IPP @ 10/1000µs: 5A
- Peak Pulse Current Ippm: 19A
- Power Dissipation Pd: 5W
- Power Dissipation Ptot Max: 5W
- Repetitive Reverse Voltage Vrrm Max: 256V
- Reverse Leakage Current Max: 1µA
- Stand-off Voltage: 256V
- Test Current: 1mA
