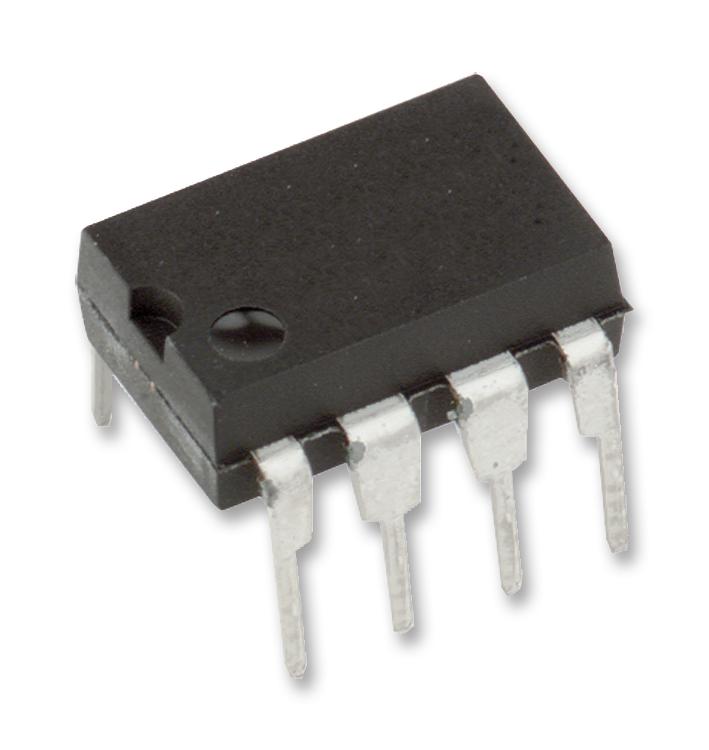

MICROCHIP - 25AA1024-I/P - EEPROM, 1 Mbit, 128K x 8bit, Serial SPI, 20 MHz, DIP, 8 Pins
- Memory Size: 1Mbit
- EEPROM Memory Configuration: 128K x 8bit
- Memory Interface Type: Serial SPI
- Clock Frequency: 20MHz
- Memory Case Style: DIP
- No. of Pins: 8Pins
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 5.5V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: 1Mbit SPI Serial EEPROM
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Automotive Qualification Standard: AEC-Q100
- Clock Frequency Max: 10MHz
- IC Generic Number: 25AA1024
- IC Interface Type: Serial SPI
- Memory Density: 1Mbit
- Memory Type: EEPROM
- Memory Voltage Vcc: 1.8V
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range: 1.8V to 5.5V
- Termination Type: Through Hole
