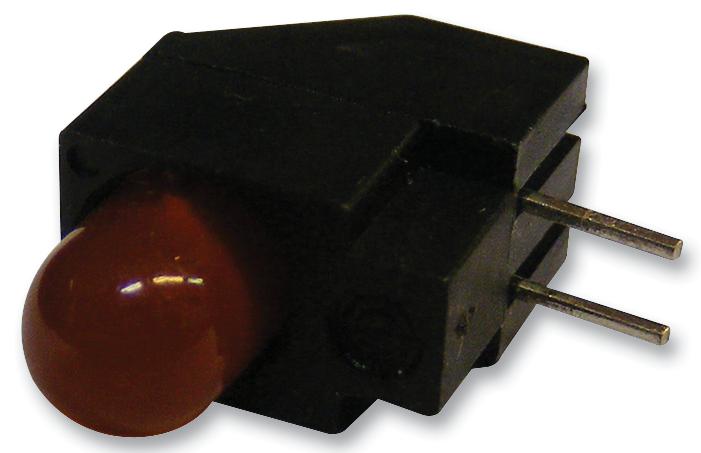

DIALIGHT - 550-3005F - Circuit Board Indicator, Green, Red, 1 LEDs, Through Hole, T-1 3/4 (5mm), R 20mA, G 20mA
- LED Colour: Green, Red
- No. of LEDs: 1LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 3/4 (5mm)
- Forward Current / Colour: R 20mA, G 20mA
- Luminous Intensity / Colour: R 90mcd, G 40mcd
- Forward Voltage / Colour: R 1.8V, G 2.1V
- Viewing Angle: 60°
- Height: 6.1mm
- Width: 6.1mm
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Forward Current If: 20mA
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.8V
- LED / Lamp Size: 5mm / T-1 3/4
- LED Type: Multicolour
- Lens Shape: Round
- Luminous Intensity: 90mcd
- Luminous Intensity Typ: 90mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +100°C
- Wavelength Green LED: 565nm
- Wavelength Red LED: 660nm
