553-0112F LED, Pcb, 3mm, Red-GRN DIALIGHT

DIALIGHTUGS :553-0112F Code de commande:1461591

Prix:
Prix ​​promotionnel€3,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2211 unité)

Documents et téléchargements

description

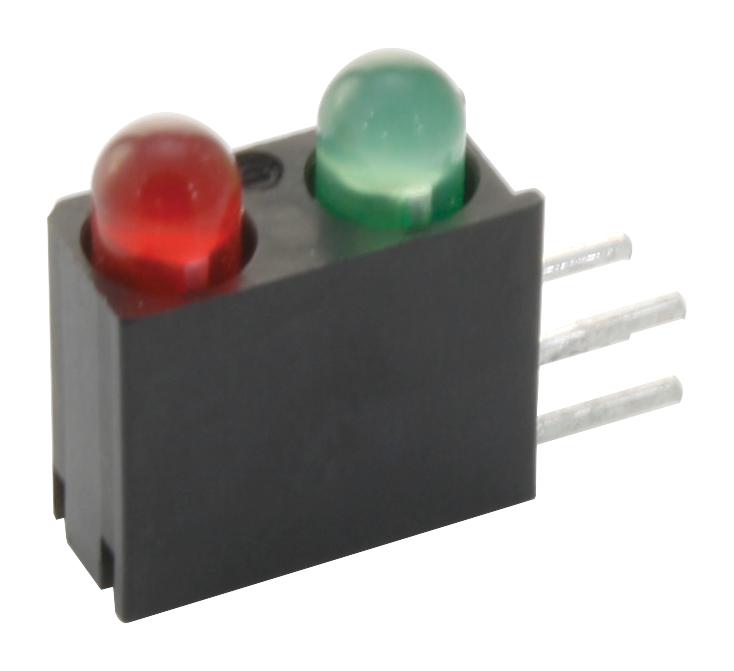

DIALIGHT - 553-0112F - Circuit Board Indicator, Green, Red, 2 LEDs, Through Hole, T-1 (3mm), R 10mA, G 10mA

  • LED Colour: Green, Red
  • No. of LEDs: 2LEDs
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Forward Current / Colour: R 10mA, G 10mA
  • Luminous Intensity / Colour: R 10mcd, G 16mcd
  • Forward Voltage / Colour: R 2V, G 2.1V
  • Viewing Angle: 45°
  • Height: 9.652mm
  • Width: 4.318mm
  • Product Range: 553 Series
  • SVHC: No SVHC (15-Jun-2015)
  • Forward Current If: 10mA
  • Forward Current If Max: 10mA
  • Forward Voltage: 2.1V
  • LED / Lamp Size: 3mm / T-1
  • LED Configuration: Array
  • LED Type: Multicolour
  • Lens Shape: Round
  • Luminous Intensity: 16mcd
  • Luminous Intensity Typ: 16mcd
  • No. of Pins: 4Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +85°C
  • Wavelength Green LED: 563nm
  • Wavelength Red LED: 650nm
