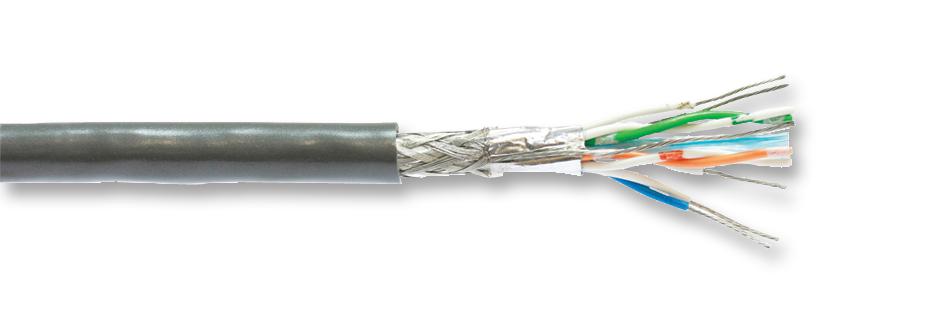

BELDEN - 8105 - Multipair Cable, Computer, Per M, Screened, 5 Pair, 24 AWG, 0.2 mm²
- Cable Shielding: Screened
- No. of Pairs: 5 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.2mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 30V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 8mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 6225C EQUIVALENT
- Approval Bodies: UL
- Belden Type Number: 8105
- Cable Type: Foil + Braided Shield
- Cable UL Style Number: UL2919
- Complex Cable Make-Up: 10 x 7/32
- Conductor Make-up: 7 / 32AWG
- Conductor Plating: Tin
- Core - Core Capacitance: 41pF/m
- Core-Screen Capacitance: 72.2pF
- Current Rating: 1.5A
- Drain Wire Type: Tinned Copper
- Impedance: 100ohm
- No. of Cores: 10Core
- Outer Diameter: 8.03mm
- Primary Conductor Resistance: 78.7ohm/km
- Resistance per Metre: 78.7ohm/km
- Screen Type Primary: Aluminium Polyester
- Screen Type, Secondary: Tinned copper braid
- Velocity of Propagation (%): 78%
- Wire Size: 24AWG
