description

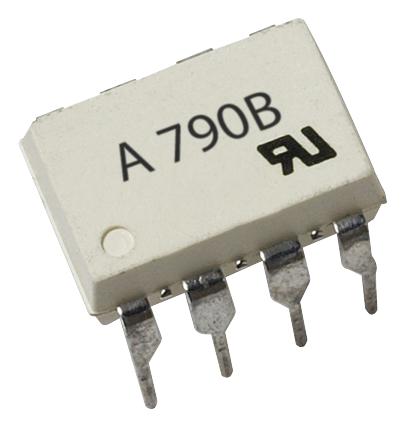

BROADCOM - ACPL-790B-300E - Optocoupler, Optically Isolated Amplifiers, 1 Channel, Surface Mount DIP, 8 Pins, 5000 Vrms
- No. of Channels: 1 Channel
- Optocoupler Case Style: Surface Mount DIP
- No. of Pins: 8Pins
- Isolation Voltage: 5000Vrms
- CTR Min: -
- Bandwidth: 200kHz
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Amplifer Supply Voltage: 3V to 5.5V
- Amplifier Case Style: DIP
- Gain Non-Linearity Max: 0.13%
- Input Offset Voltage: 0.6mV
- No. of Amplifiers: 1Amplifiers
- No. of Channels: 1Channels
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Supply Current: 13mA
- Supply Voltage Range: 3V to 5.5V
