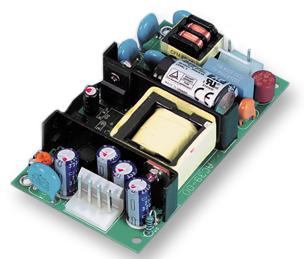

XP POWER - ACS60US09 - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 60 W, 90V AC to 264V AC, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 60W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 6.67A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Efficiency: 82%
- External Depth: 30.48mm
- External Length / Height: 94mm
- External Width: 50.8mm
- Height: 30.48mm
- Hold Up Time: 8ms
- Input Current: 0.6A
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Input Voltage DC Max: 370VDC
- Input Voltage DC Min: 110VDC
- Length: 101.6mm
- Line Regulation: 0.5%
- Load Regulation: 1%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 6.67A
- Output Power Max: 60W
- Peak Current: 8A
- Power Rating: 60W
