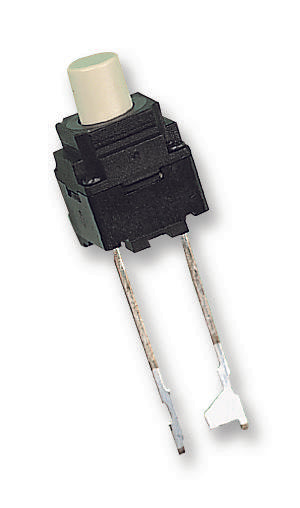

OMRON - B3WN-6002 - Tactile Switch, B3WN, Top Actuated, Through Hole, Square Button, 200 gf, 50mA at 12VDC
- Product Range: B3WN Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Square Button
- Actuating Force: 200gf
- Contact Rating: 50mA at 12VDC
- Switch Dimensions (L x W): 10mm x 10mm
- IP Rating: IP67
- Illumination: Non Illuminated
- Actuation Type: Top
- Actuator / Cap Colour: White
- Contact Configuration: SPST-NO
- Contact Current DC Max: 50mA
- Contact Current Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 12V
- Contact Voltage DC Nom: 12V
- External Depth: 8mm
- External Length / Height: 13mm
- External Width: 8mm
- IP / NEMA Rating: IP67
- Lead Spacing: 17mm
- Load Current Min: 1mA
- No. of Mechanical Operations: 100000
- Operating Force: 1.96N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 4mm
- Row Pitch: 5mm
- Switch Terminals: Solder
- Voltage Rating V DC: 12V
