CBBR0107 Cable, CW1308, 4PAIR, 100m Pro Power

PRO POWERUGS :CBBR0107 Code de commande:148941

Prix:
Prix ​​promotionnel€64,75

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (33 unité)

Documents et téléchargements

description

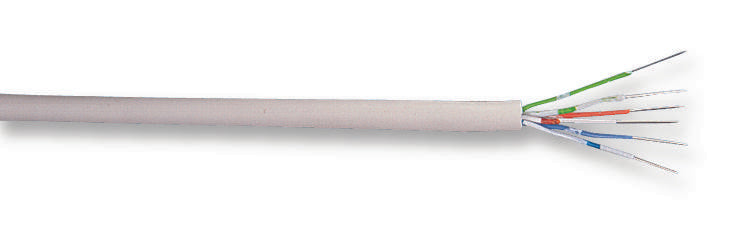

PRO POWER - CBBR0107 - Multipair Cable, CW1308 Telecom, Unscreened, 4 Pair, 0.196 mm², 328 ft, 100 m

  • Cable Shielding: Unscreened
  • No. of Pairs: 4 Pair
  • Wire Gauge: -
  • Conductor Area CSA: 0.196mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • Jacket Colour: White
  • No. of Max Strands x Strand Size: Solid
  • Voltage Rating: -
  • Jacket Material: PVC
  • Conductor Material: Copper
  • External Diameter: 5mm
  • Product Range: -
  • Complex Cable Make-Up: 8 x 1/0.5
  • Conductor Make-up: 1 / 0.5mm
  • Core - Core Capacitance: 500pF
  • Insulation Resistance: 50Mohm
  • Outer Diameter: 5mm
  • Resistance per Metre: 0.0978ohm/m
  • Secondary Insulation Colour: White
  • Secondary Insulation Material: PVC
  • Standard: CW1308
  • Voltage Rating VAC: 80V
