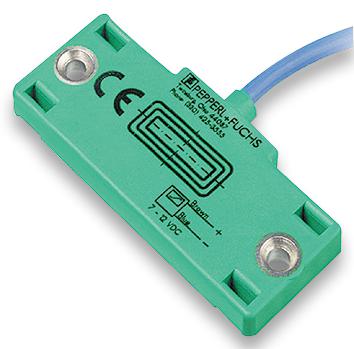

PEPPERL+FUCHS - CBN5-F46-E0 - Capacitive Proximity Sensor, Basic Series, Flat, 5 mm, NPN-NO, 10 to 30 Vdc, Pre-Wired
- Sensing Range Max: 5mm
- Thread Size - Metric: -
- Sensor Output: NPN
- Supply Voltage DC Min: 10V
- Supply Voltage DC Max: 30V
- Product Range: CBN5-F46-E0
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 5mm
- External Length / Height: 20mm
- External Width: 50mm
- Frequency Response Max: 10Hz
- Sensing Distance Max: 5mm
- Sensing Range: 0mm to 5mm
- Sensor Input: Capacitive
- Supply Voltage Max: 30VDC
- Supply Voltage Min: 10VDC
- Supply Voltage Range DC: 10V to 30V
