description

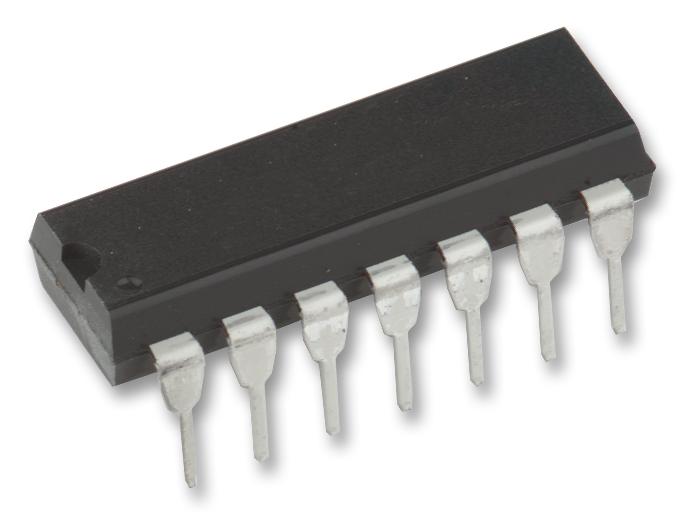

TEXAS INSTRUMENTS - CD4024BE - Ripple Carry Binary / Divider, 24 MHz, 3 V to 18 V, DIP-14
- Logic Family / Base Number: CD4024
- Counter Type: Ripple Carry Binary / Divider
- Clock Frequency: 24MHz
- Count Maximum: 7
- Logic Case Style: DIP
- No. of Pins: 14Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic IC Family: CD4000
- Logic IC Base Number: 4024
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: CD4000 LOGIC Series
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 4024
- Device Marking: 4024
- IC Generic Number: 4024
- Logic Function Number: 4024
- Logic IC Base Number: 4024
- Logic IC Function: CMOS 7-Stage Ripple-Carry Binary Counter/Divider
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage Range: 3V to 18V
- Termination Type: Through Hole
