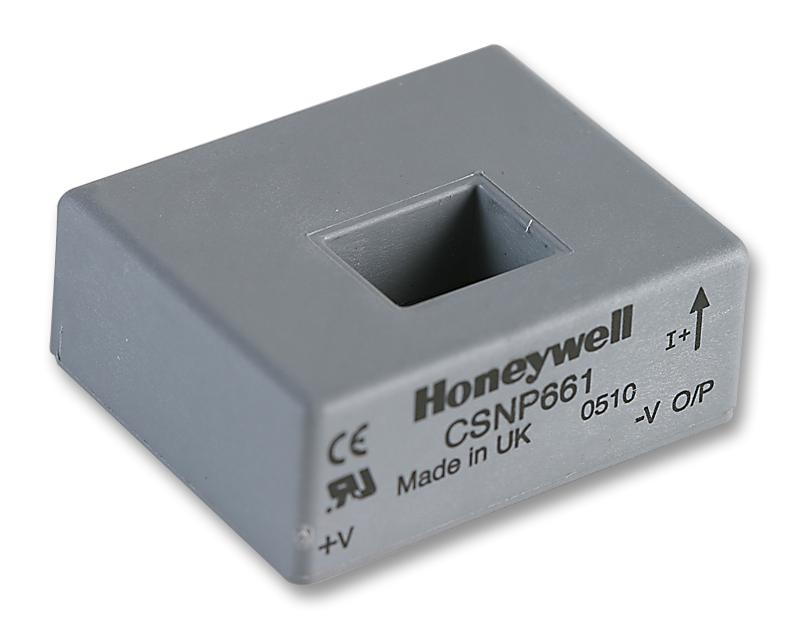

CSNF661 Current Sensor, 100A, AC Or DC Honeywell

HONEYWELLUGS :CSNF661 Code de commande:1187544

Prix:
Prix ​​promotionnel€132,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (59 unité)

Documents et téléchargements

description

HONEYWELL - CSNF661 - Current Sensor, CSN Series, Solid State, -150A to 150A, Closed Loop Output, 12 Vdc to 15 Vdc

  • Sensor Output: Closed Loop
  • Supply Voltage DC Min: 12V
  • Supply Voltage DC Max: 15V
  • Current Measuring Range DC: -150A to 150A
  • Current Measuring Range AC: -150A to 150A
  • Response Time: 0.5µs
  • Accuracy %: 0.5%
  • Product Range: CSN Series
  • SVHC: No SVHC (07-Jul-2017)
  • Accuracy: 0.5%
  • Coil Resistance: 30ohm
  • Current Consumption: 10mA
  • Current Range AC: 150 A
  • Current Range DC: 150 A
  • Current Rating: 10mA
  • External Depth: 14.45mm
  • External Length / Height: 29.8mm
  • External Width: 36.5mm
  • Fixing Centres: 25mm
  • Flammability Rating: UL94V-0
  • Linearity: 0.1%
  • Material: Glass Filled PBT
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Current: 100mA
  • Output Type: Current
  • Percentage Accuracy +: 0.5%
  • Percentage Accuracy -: 0.5%
  • Supply Voltage Range DC: ± 12V to ± 15V
  • Total Current Rating: 10mA
  • Transducer Function: Current
