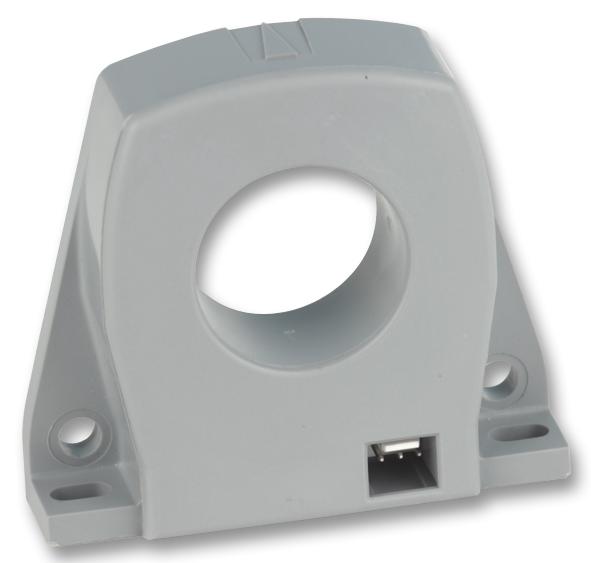

HONEYWELL - CSNS300M - Current Sensor, CSN Series, Solid State, -600A to 600A, Closed Loop Output, 12 Vdc to 18 Vdc
- Sensor Output: Closed Loop
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 18V
- Current Measuring Range DC: -600A to 600A
- Current Measuring Range AC: -600A to 600A
- Response Time: 0.5µs
- Accuracy %: 0.5%
- Product Range: CSN Series
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: 0.5%
- Bandwidth: 150kHz
- Coil Resistance: 5ohm
- Current Consumption: 10mA
- Current Range AC: 0 to 600A
- Current Range DC: 0 to 600A
- Current Rating: 300A
- External Depth: 60.7mm
- External Length / Height: 19mm
- External Width: 67.5mm
- Material: Insulated Plastic Case
- Operating Frequency Range: 0Hz to 150kHz
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Output Current: 150mA
- Output Current Max: 600A
- Output Current Min: 0A
- Output Type: Current
- Supply Voltage: 15VDC
- Supply Voltage Range DC: ± 12V to ± 18V
- Transducer Function: Current
