description

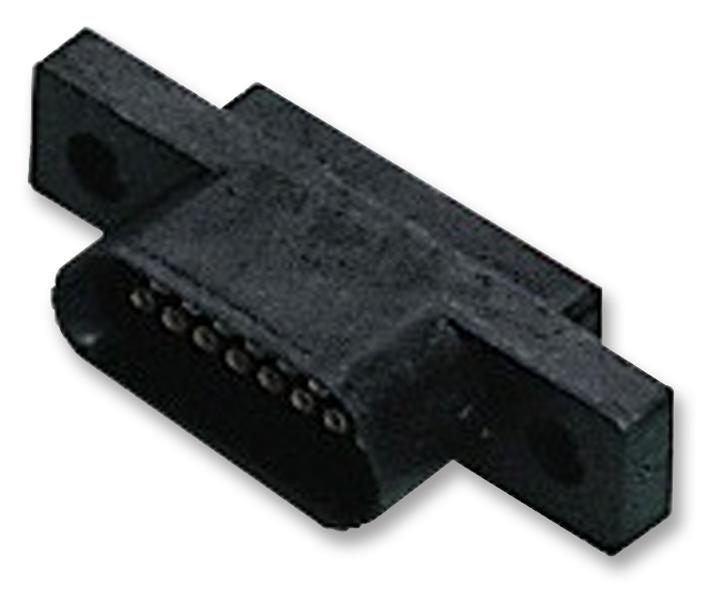

CINCH CONNECTIVITY SOLUTIONS - DCDA-15PSB-LF - D Sub Connector, Dura-Con, Micro D, Plug, Dura-Con, 15 Contacts, Solder Cup
- No. of Contacts: 15Contacts
- Gender: Plug
- Product Range: Dura-Con Series
- Contact Termination Type: Solder Cup
- Connector Mounting: Panel Mount
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2018)
- Connector Body Material: Aluminium Alloy Body
- Contact Resistance: 8mohm
- Contact Termination: Solder
- D Sub Connector Type: Micro D
- DC Current Max: 3A
- Flammability Rating: UL94V-0
- Material: Glass Reinforced Thermoplastic
- No. of Mating Cycles: 500
- Operating Temperature Max: +135°C
- Operating Temperature Min: -55°C
- Standard: MIL-PRF-83513-D
- Termination Method: Solder
- Withstand Voltage: 600V
