description

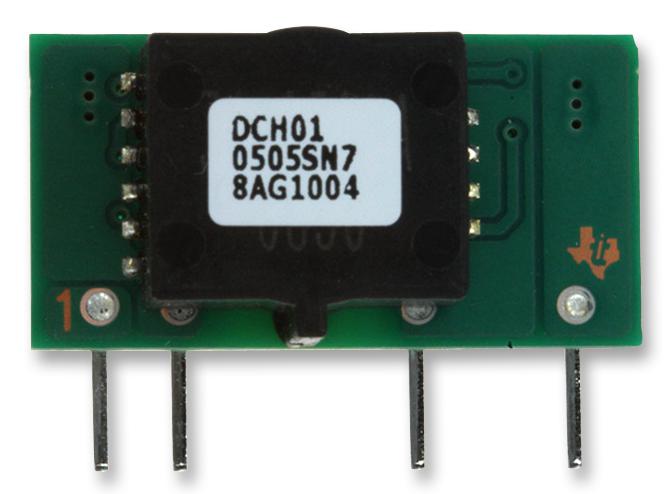

TEXAS INSTRUMENTS - DCH010505SN7 - Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 1 Output, 5.1 V, 200 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 5.1V
- Output Current - Output 1: 200mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 4.5V
- Input Voltage DC Max: 5.5V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 10.15mm
- Height: 7.62mm
- Depth: 19.56mm
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 1%
- Base Number: 10505
- Frequency: 70kHz
- No. of Outputs: 1Outputs
- No. of Pins: 4Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Output Voltage Max: 5V
- Power Rating: 1W
- Primary Input Voltage: 5V
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 4.5V
- Switch Output Current Isw Max: 200mA
- Voltage Regulator Type: Isolated Unregulated
