description

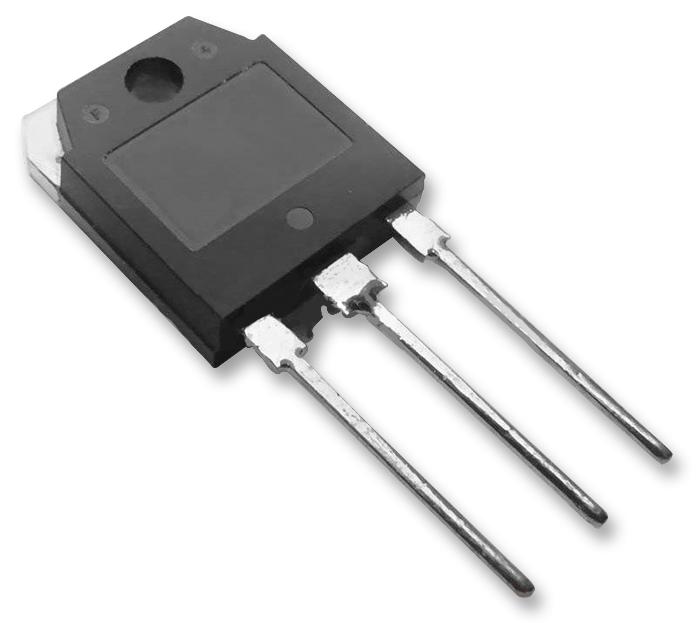

IXYS SEMICONDUCTOR - DPG60C200QB - Fast / Ultrafast Diode, Epitaxial Diode (FRED), 200 V, 30 A, Dual Common Cathode, 1.06 V, 35 ns
- Repetitive Reverse Voltage Vrrm Max: 200V
- Forward Current If(AV): 30A
- Diode Configuration: Dual Common Cathode
- Forward Voltage VF Max: 1.06V
- Reverse Recovery Time trr Max: 35ns
- Forward Surge Current Ifsm Max: 300A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-3P
- No. of Pins: 3 Pin
- Product Range: DPG60 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Current Ifsm: 300A
- Current Ir Max: 100µA
- Diode Type: Fast Recovery
- Junction Temperature Tj Max: 175°C
- No. of Pins: 3Pins
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Power Dissipation Ptot Max: 160W
- Reverse Recovery Time trr Typ: 35ns
- Termination Type: Through Hole
