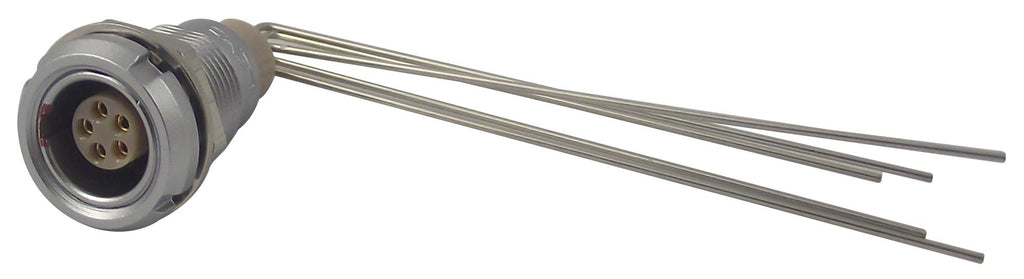

LEMO - ECG.0B.305.CLV - Circular Connector, 0B Series, Panel Mount Receptacle, 5 Contacts, Solder Socket, Push-Pull
- Product Range: 0B Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 5Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Push-Pull
- Connector Body Material: Brass Body
- Connector Body Plating: Chrome
- Contact Material: Bronze
- Contact Plating: Gold
- SVHC: No SVHC (07-Jul-2017)
- Body Plating: Nickel
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 5.6mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 6.5A
- Dielectric Strength: 19V/m
- Female Contact Material: Bronze
- Gender: Receptacle
- IP / NEMA Rating: IP50
- Male Contact Material: Brass
- Male Contact Plating: Gold
- No. of Mating Cycles: 5000
- Operating Temperature Max: -55°C
- Operating Temperature Min: 250°C
- Voltage Rating V DC: 400V
- Voltage Rating VAC: 260V
- Working Voltage: 260V
